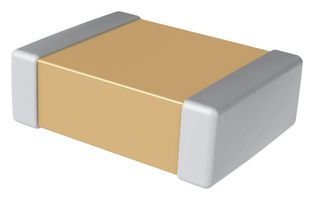

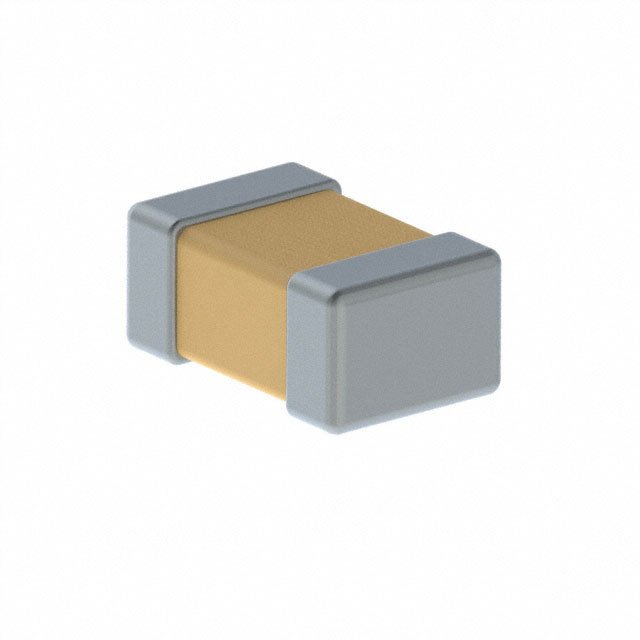

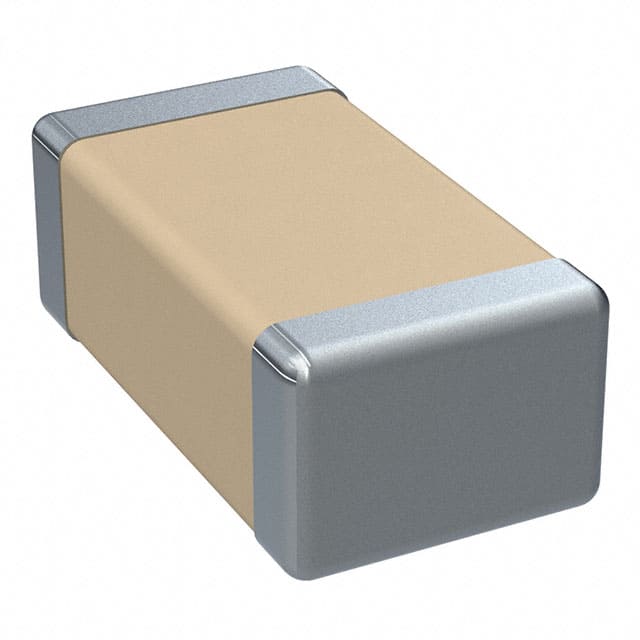

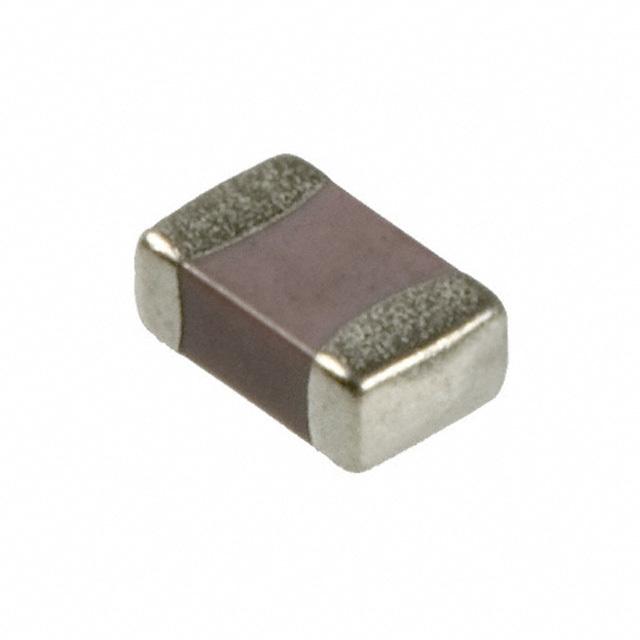

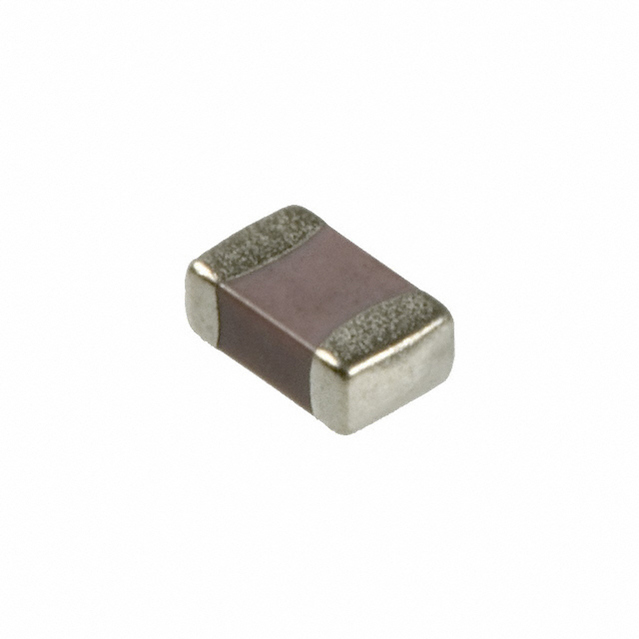

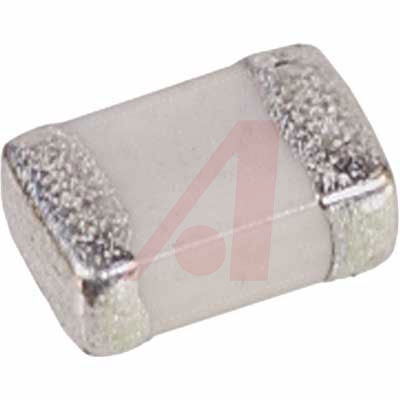

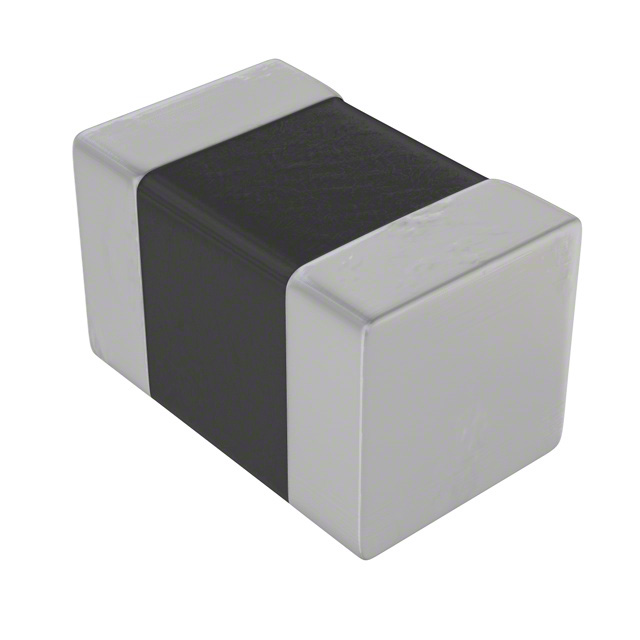

KEMET C0805C104Z5UACTU 多层陶瓷电容, 0.1uF -20 %容差 50V
Ceramic chips consist of formulated ceramic dielectric materials which have been fabricated into thin layers, interspersed with metal electrodes alternately exposed on opposite edges of the laminated structure. The entire structure is then fired at high temperature to produce a monolithic block which provides high capacitance values in a small physical volume. After firing, conductive terminations are applied to opposite ends of the chip to make contact with the exposed electrodes. Kemet ceramic chip capacitors are offered in the five most popular temperature characteristics: C0G NP0 ,X7R, X5R,Z5U & Y5V.
额定电压DC 50.0 V
绝缘电阻 1 GΩ
电容 0.1 µF
容差 +80/-20%
电介质特性 Z5U
工作温度Max 85 ℃
工作温度Min 10 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2

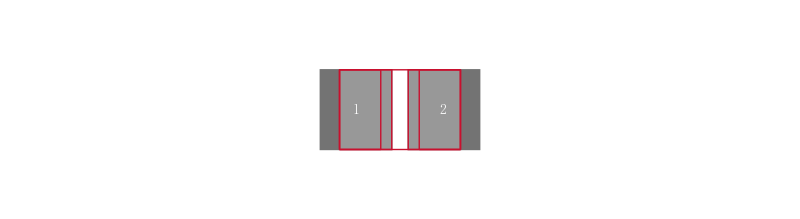

封装公制 2012
封装 0805

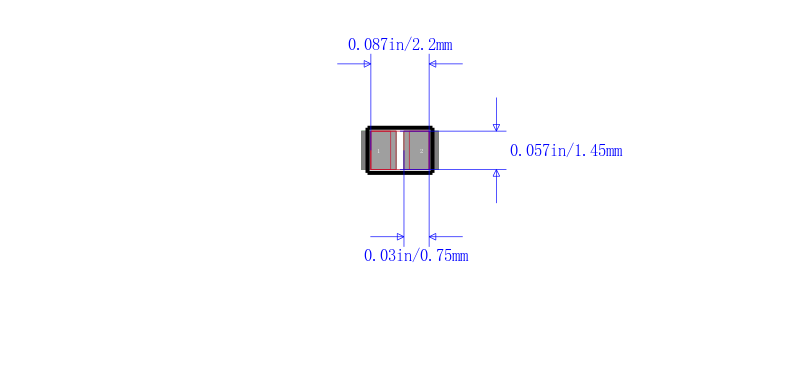

引脚间距 0.75 mm
长度 2.00 mm
宽度 1.2 mm
高度 0.78 mm
封装公制 2012
封装 0805
引脚间距 0.75 mm
介质材料 Ceramic
工作温度 10℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0805C104Z5UACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
08055E104ZAT2A 艾维克斯 | 完全替代 | C0805C104Z5UACTU和08055E104ZAT2A的区别 |
SMC0805Z104C NTE Electronics | 类似代替 | C0805C104Z5UACTU和SMC0805Z104C的区别 |
08053E104ZAT2A 艾维克斯 | 功能相似 | C0805C104Z5UACTU和08053E104ZAT2A的区别 |
