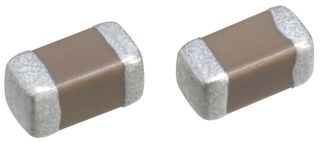

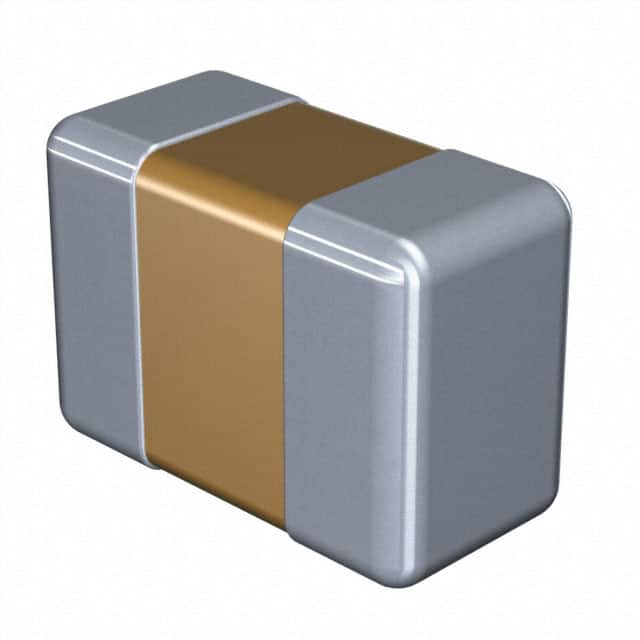

0402 68nF ±10% 25V X5R
±10% 25V 陶瓷器 X5R 0402(1005 公制)
得捷:
CAP CER 0.068UF 25V X5R 0402
艾睿:
You can use multiple capacitors of different parameters choosing this C1005X5R1E683K050BC multilayer ceramic capacitor from TDK! It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. Its capacitance value is 0.068uF. It has a tolerance of 10%.
安富利:
CAP .068UF 25VDC X5R 10% SMD 0402
Verical:
Cap Ceramic 0.068uF 25V X5R 10% Pad SMD 0402 85C Low ESR T/R
Newark:
# TDK C1005X5R1E683K050BC SMD Multilayer Ceramic Capacitor, 0402 [1005 Metric], 0.068 µF, 25 V, ± 10%, X5R, C Series
额定电压DC 25.0 V
电容 68000 pF
容差 ±10 %
电介质特性 X5R
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount

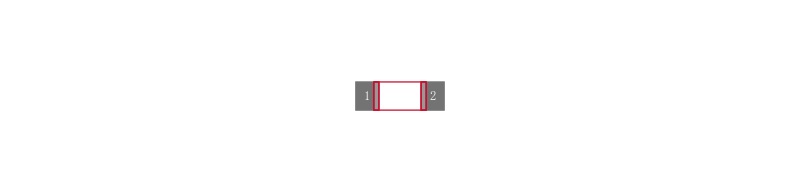

引脚数 2

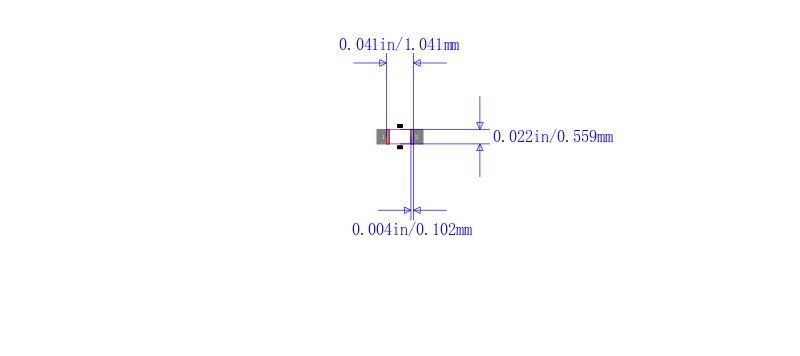

封装公制 1005
封装 0402

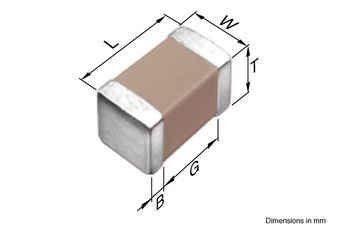

长度 1.00 mm
宽度 500 µm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 X5R/-55℃~+85℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 85℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用, for Automotive use., Please refer to Part No., Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C1005X5R1E683K050BC TDK 东电化 | 当前型号 | 当前型号 |
C1005X5R1H683K050BB 东电化 | 功能相似 | C1005X5R1E683K050BC和C1005X5R1H683K050BB的区别 |
C1005X5R1V683K050BB 东电化 | 功能相似 | C1005X5R1E683K050BC和C1005X5R1V683K050BB的区别 |
GRM155R61E683KA87D 村田 | 功能相似 | C1005X5R1E683K050BC和GRM155R61E683KA87D的区别 |
