CY8C5667AXI-LP006

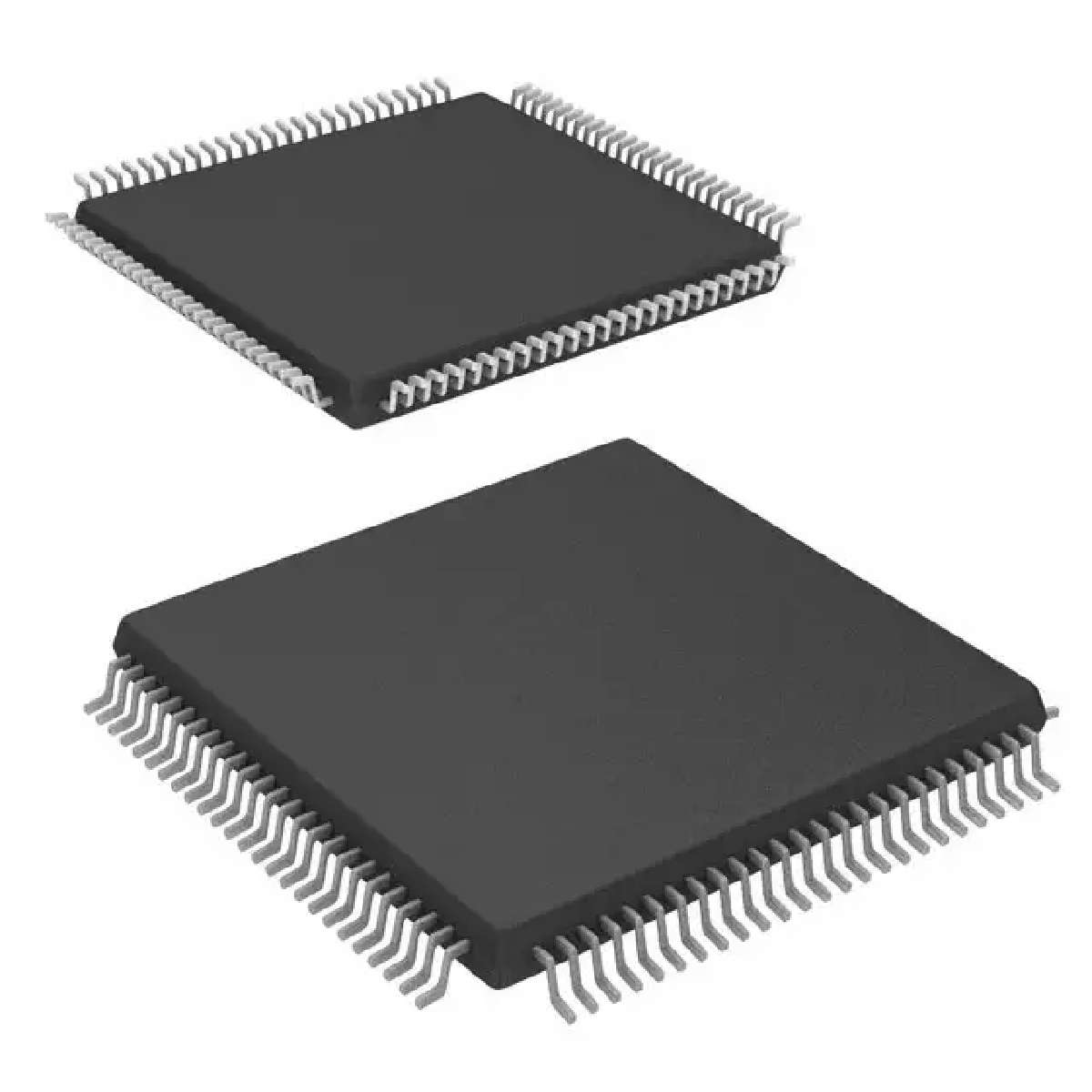

CY8C5667 系列 32 位 67 Mhz 128 kB 闪存 32 kB SRAM PSoC5 - TQFP-100

The is a 32-bit PSoC® 5LP true System-on-Chip Microcontroller with memory, analog and digital peripheral functions. The CY8C56LP family offers a modern method of signal acquisition, signal processing and control with high accuracy, high bandwidth and high flexibility. Analog capability spans the range from thermocouples near DC voltages to ultrasonic signals. The CY8C56LP family can handle dozens of data acquisition channels and analog inputs on every general-purpose input/output GPIO pin. The CY8C56LP family is also a high performance configurable digital system with some part numbers including interfaces such as USB and inter-integrated circuit I²C. In addition to communication interfaces, the CY8C56LP family has an easy to configure logic array, flexible routing to all I/O pins and a high performance ARM Cortex-M3 microprocessor core.

.

32-bit ARM Cortex-M3 CPU core

.

128kB of Flash program memory

.

32kB of SRAM

.

Up to 32kB flash error correcting code ECC or configuration storage

.

2kB EEPROM memory

.

24-channel DMA with multilayer AHB bus access

.

Any GPIO to any digital or analog peripheral routability

.

LCD direct drive from any GPIO, up to 46x16 segments

.

CapSense® support from any GPIO

.

1.2 to 5.5V I/O Interface voltages, up to four domains

.

Maskable, independent IRQ on any pin or port

.

Schmitt-trigger TTL inputs

.

All GPIOs configurable as open drain high/low, pull-up/pull-down, High Z or strong output

.

25mA Sink on SIO

.

20 to 24 Programmable PLD based universal digital blocks UDB

.

Full-speed FS USB 2.0 12Mbps using a 24MHz external oscillator

.

Four 16-bit configurable timer, counter and PWM blocks

.

67MHz, 24-bit Fixed point digital filter block DFB to implement FIR and IIR filters

.

Cyclic redundancy check CRC

.

Pseudo random sequence PRS generator
