CY8C5867 系列 32 kB RAM 128 kB 闪存 可编程 系统级芯片- QFN-68
The is a true programmable Embedded System-on-chip, integrating configurable analog and digital peripherals, memory and a microcontroller on a single chip. The PSoC device employ a highly configurable system-on-chip architecture for embedded control design. It integrate configurable analog and digital circuits, controlled by an on-chip microcontroller. A single PSoC device can integrate as many as 100 digital and analog peripheral functions, reducing design time, board space, power consumption and system cost while improving system quality. The CY8C58LP device includes up to 256kB flash, 64kB SRAM, 2kB EEPROM, a precision on-chip voltage reference, precision oscillators, flash, ECC, DMA, a fixed function I²C, JTAG/SWD programming and debug, external memory interface, boost and more. In addition to these features, the flexible UDBs and analog subsection support a wide range of peripherals.
频率 67 MHz
电源电压DC 1.71V min
时钟频率 67.0 MHz
RAM大小 32 KB
位数 32
模数转换数ADC 2
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 4
电源电压Max 5.5 V
电源电压Min 1.71 V
安装方式 Surface Mount
引脚数 68

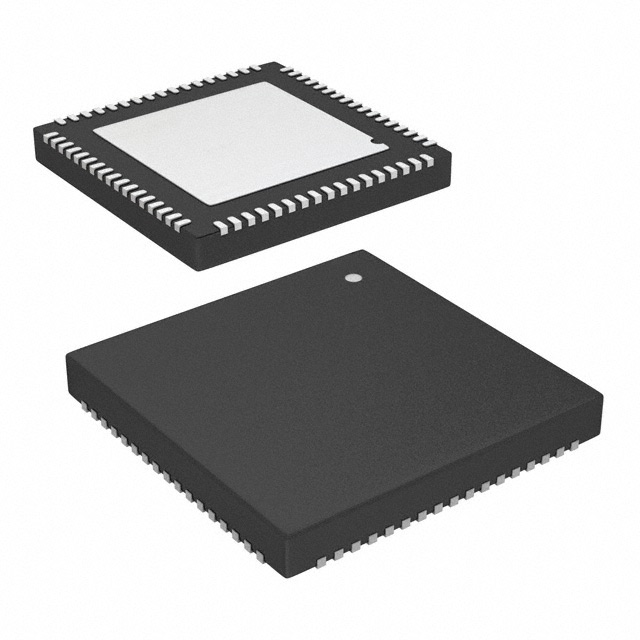

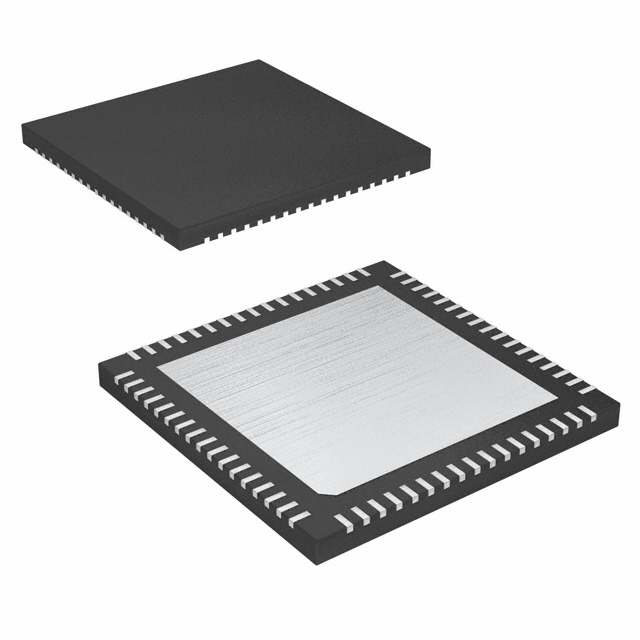

封装 QFN-68
长度 8 mm
宽度 8 mm
高度 1 mm
封装 QFN-68
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
