CAB 9 GS

FISCHER ELEKTRONIK  CAB 9 GS  跳线母线, Jumper, 0.6 to 0.64mm Wire Wrap Pins and 0.6 to 0.7mm Dia, 2 路, 2.54 mm

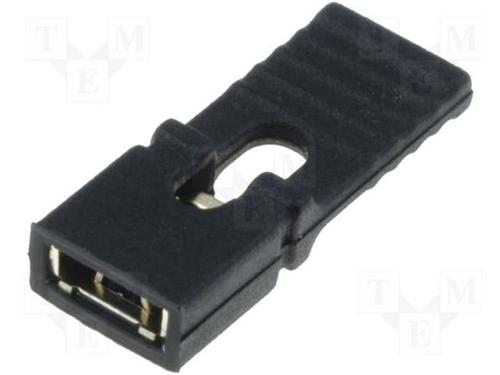

The from Fischer Elektronik is a two contact jumper with 2.54mm pitch spacing. This open tag version black colour jumper is used for 0.6mm to 0.64mm wire wrap pins and 0.6mm to 0.7mm diameter open designs. It can be mounted behind and next to each other.

.

0.1µm gold plated surface contacts

.

Insert depth of 4mm to 5.6mm

.

Nominal current of 3A

.

Nominal voltage of 500VAC

.

Polybutylene terephthalate PBT insulated body

.

High temperature range from -40°C to 105°C
