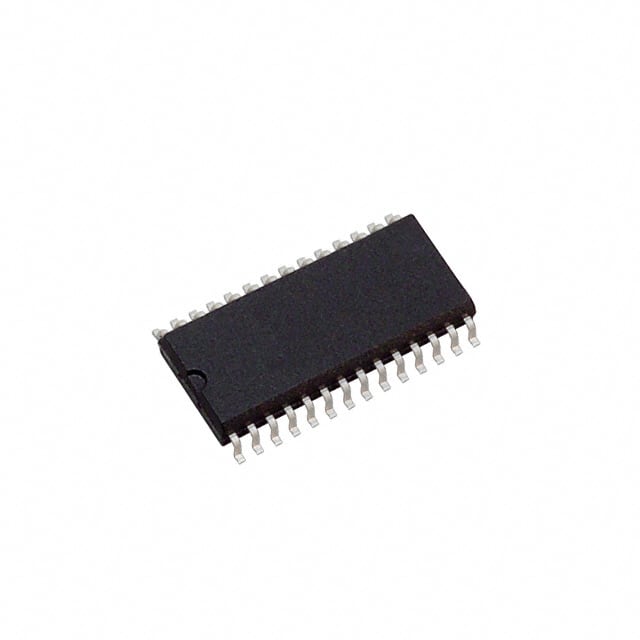

MCU 8Bit COP8 CISC 32KB EPROM 3.3V/5V 28Pin SOIC Tube
A microcontroller is used in modern day control systems, this microcontroller from Texas Instruments is ideal for you. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 15 MHz. This device is based on the COP8 core architecture. This is a 8 bit processor. This device has a typical operating supply voltage of 3.3|5 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 5.5 V. Its eprom program memory is 32KB.
频率 15 MHz
电源电压DC 5.00 V, 5.50 V max
时钟频率 15.0 MHz, 1.50 MHz max
RAM大小 512 x 8
位数 8
FLASH内存容量 32 KB
I/O引脚数 24
存取时间 15.0 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 28
封装 SOIC-28
长度 17.91 mm
宽度 7.49 mm
高度 2.34 mm
封装 SOIC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
COP8SGR728M8/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
COP8SGR728M8 德州仪器 | 完全替代 | COP8SGR728M8/NOPB和COP8SGR728M8的区别 |
COP8SGR728M7 德州仪器 | 完全替代 | COP8SGR728M8/NOPB和COP8SGR728M7的区别 |
