0402 22nF ±10% 35V X7R
±10% 35V 陶瓷器 X7R 0402（1005 公制）
得捷:
CAP CER 0.022UF 35V X7R 0402
立创商城:
22nF ±10% 35V
艾睿:

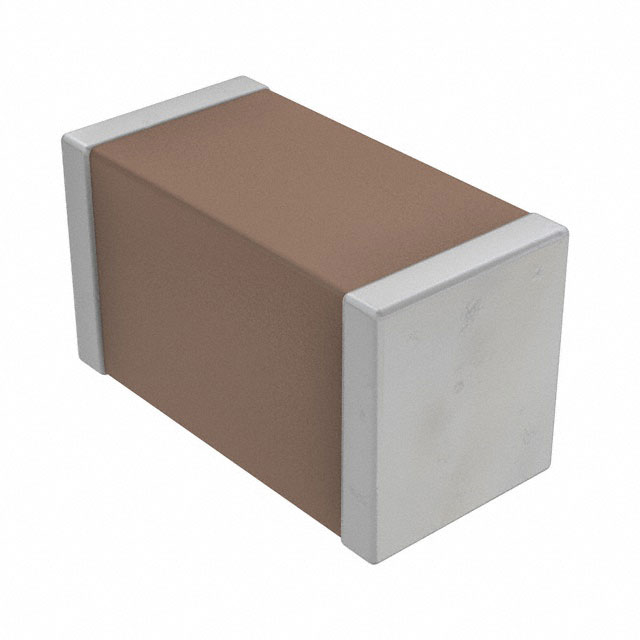

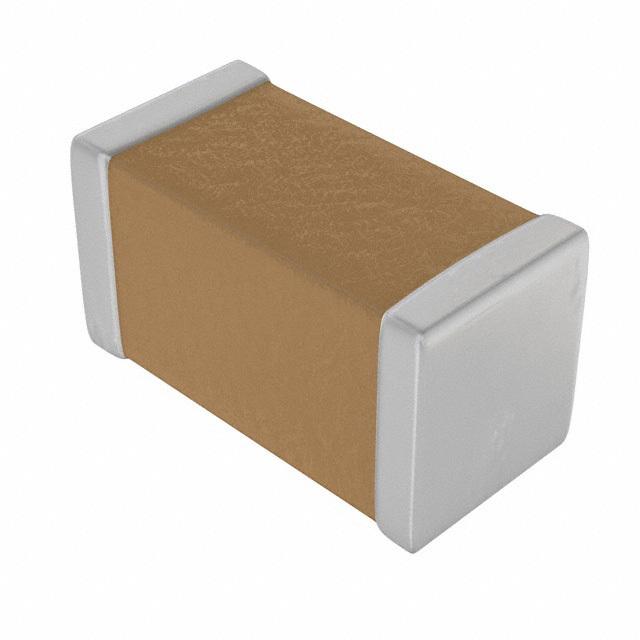

This CGA2B3X7R1V223K050BB multilayer ceramic capacitor from TDK has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 35 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its capacitance value is 0.022uF. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. It has a tolerance of 10%.
安富利:
Cap Ceramic 0.022uF 35V X7R 10% SMD 0402 125°C Punched Paper T/R
额定电压DC 35 V
电容 0.022 µF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 35 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 Automotive Grade, 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CGA2B3X7R1V223K050BB TDK 东电化 | 当前型号 | 当前型号 |
CGA2B2X7R1E223K050BA 东电化 | 功能相似 | CGA2B3X7R1V223K050BB和CGA2B2X7R1E223K050BA的区别 |
C1005X7R1V223K050BB 东电化 | 功能相似 | CGA2B3X7R1V223K050BB和C1005X7R1V223K050BB的区别 |
CGA2B2X7R1E223M050BA 东电化 | 功能相似 | CGA2B3X7R1V223K050BB和CGA2B2X7R1E223M050BA的区别 |
