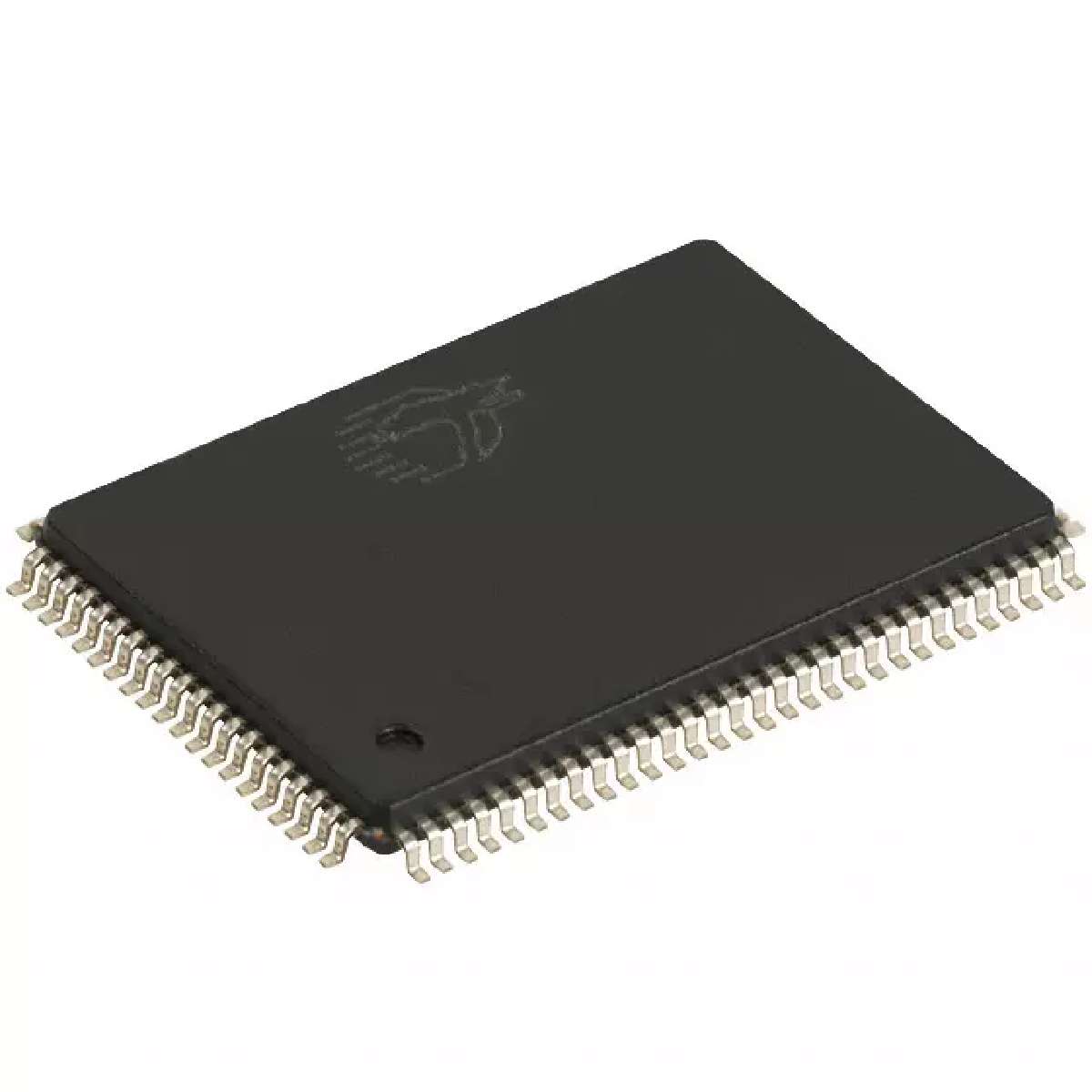

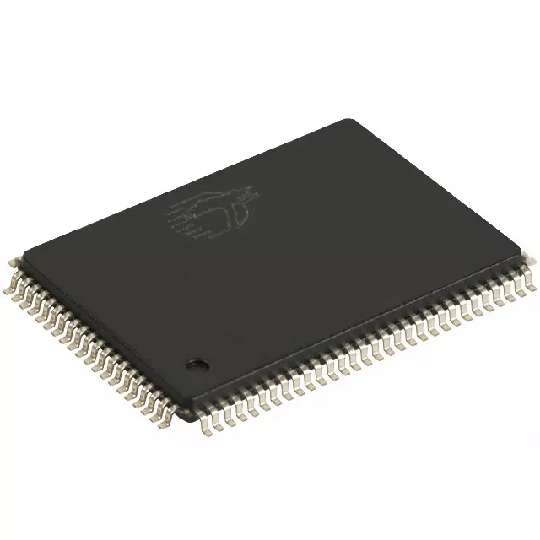

CY7C68014A-100AXC

USB 2.0高速外设控制器,EZ-USB FX2LP系列,电池供电的应用的理想选择

* USB 2.0-USB-IF high speed certified TID # 40440111 * Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor * Fit, form and function compatible with the FX2 * Pin-compatible * Object-code-compatible * Functionally-compatible FX2LP is a superset * Ultra Low power: ICC no more than 85 mA in any mode * Ideal for bus and battery powered applications * Software: 8051 code runs from: * Internal RAM, which is downloaded via USB * Internal RAM, which is loaded from EEPROM * External memory device 128 pin package * 16 KBytes of on-chip Code/Data RAM * Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints * Buffering options: double, triple, and quad * Additional programmable BULK/INTERRUPT 64-byte endpoint * 8- or 16-bit external data interface * Smart Media Standard ECC generation * GPIF General Programmable Interface * Allows direct connection to most parallel interface * Programmable waveform descriptors and configuration registers to define waveforms * Supports multiple Ready RDY inputs and Control CTL outputs * Integrated, industry-standard enhanced 8051 * 48-MHz, 24-MHz, or 12-MHz CPU operation * Four clocks per instruction cycle * Two USARTS * Three counter/timers * Expanded interrupt system * Two data pointers * 3.3V operation with 5V tolerant inputs * Vectored USB interrupts and GPIF/FIFO interrupts * Separate data buffers for the Set-up and Data portions of a CONTROL transfer * Integrated I2C controller, runs at 100 or 400 kHz * Four integrated FIFOs * Integrated glue logic and FIFOs lower system cost * Automatic conversion to and from 16-bit buses * Master or slave operation * Uses external clock or asynchronous strobes * Easy interface to ASIC and DSP ICs : Ideal for battery powered applications * Suspend current: 100 µA typ
