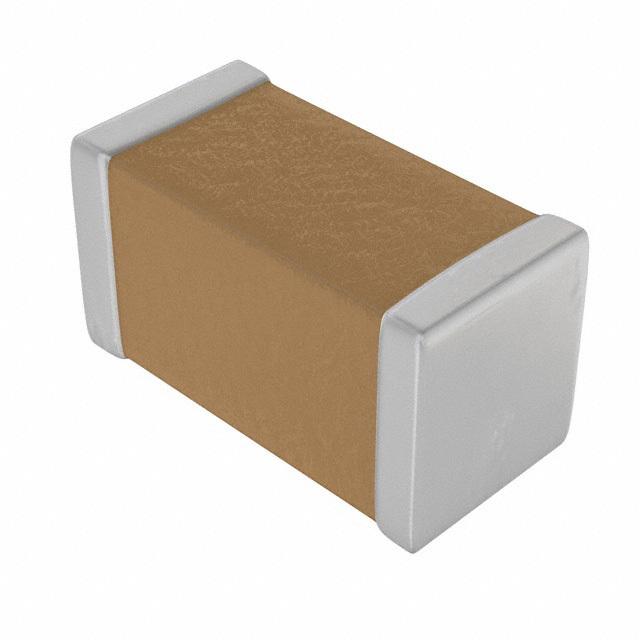

0402 150nF ±10% 6.3V X7R
0.15 µF ±10% 6.3V 陶瓷器 X7R 0402(1005 公制)
得捷:
CAP CER 0.15UF 6.3V X7R 0402
立创商城:
150nF ±10% 6.3V
艾睿:
Use its standard classification system to find out what this CGA2B3X7R0J154K050BB multilayer ceramic capacitor from TDK can do for you! It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. Its capacitance value is 0.15uF. It has a tolerance of 10%.
安富利:
Cap Ceramic 0.15uF 6.3V X7R 10% SMD 0402 125°C Punched Paper T/R
Verical:
Cap Ceramic 0.15uF 6.3V X7R 10% Pad SMD 0402 125C Low ESR Automotive T/R
额定电压DC 6.3 V
电容 0.15 µF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 Automotive Grade, 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CGA2B3X7R0J154K050BB TDK 东电化 | 当前型号 | 当前型号 |
CGA2B1X7R1A154K050BC 东电化 | 功能相似 | CGA2B3X7R0J154K050BB和CGA2B1X7R1A154K050BC的区别 |
