CD214B-F2150

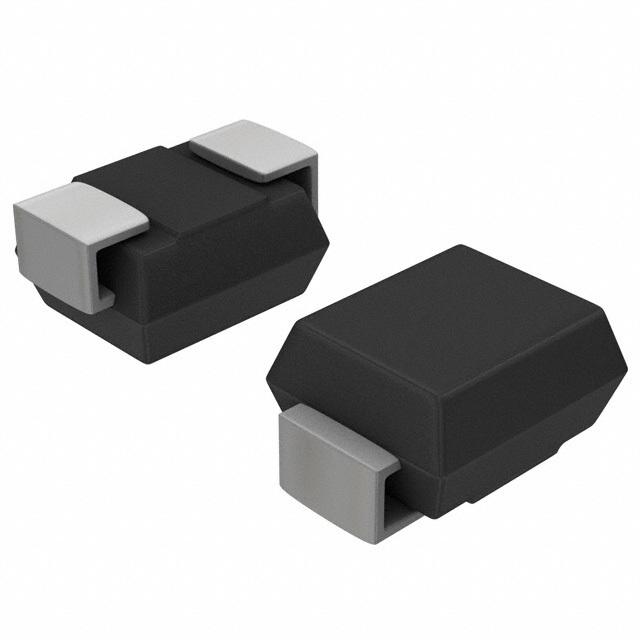

CD214B-F2150图片1
CD214B-F2150图片2
CD214B-F2150图片3
CD214B-F2150图片4
CD214B-F2150概述

CD214B - F250 〜 F2600表面贴装快速响应整流器 CD214B-F250~F2600 Surface Mount Fast Response Rectifiers

General Information

The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Surface Mount Fast Response Rectifiers for rectification applications, in compact chip DO-214AA SMB size format, which offer PCB real estate savings and are considerably smaller than most competitive parts. The Fast Response Rectifier Diodes offer a forward current of 2.0 A with a choice of repetitive peak reverse voltages of 50 V up to 600 V.

Features

■ Lead free as standard

■ RoHS compliant
.

■ Glass passivated chip

■ Low reverse leakage current

■ Low forward voltage drop

■ High current capability

CD214B-F2150中文资料参数规格
技术参数

正向电压 920mV @1A

反向恢复时间 20 ns

正向电压Max 920mV @1A

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装 DO-214AA-2

外形尺寸

长度 4.57 mm

宽度 3.94 mm

高度 2.42 mm

封装 DO-214AA-2

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

在线购买CD214B-F2150
型号: CD214B-F2150
制造商: Bourns J.W. Miller 伯恩斯
描述:CD214B - F250 〜 F2600表面贴装快速响应整流器 CD214B-F250~F2600 Surface Mount Fast Response Rectifiers
