CD214B-B250LF

BOURNS  CD214B-B250LF  肖特基整流器, AEC-Q101, 单, 50 V, 2 A, DO-214AA, 2 引脚, 700 mV

General Information

The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.

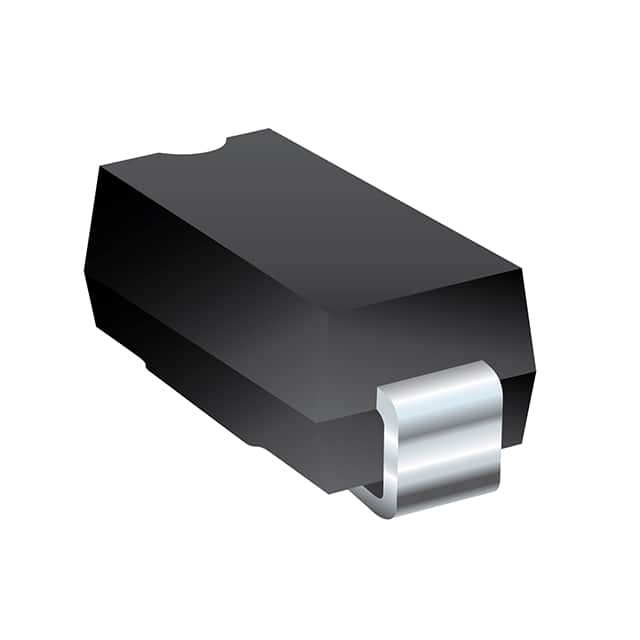

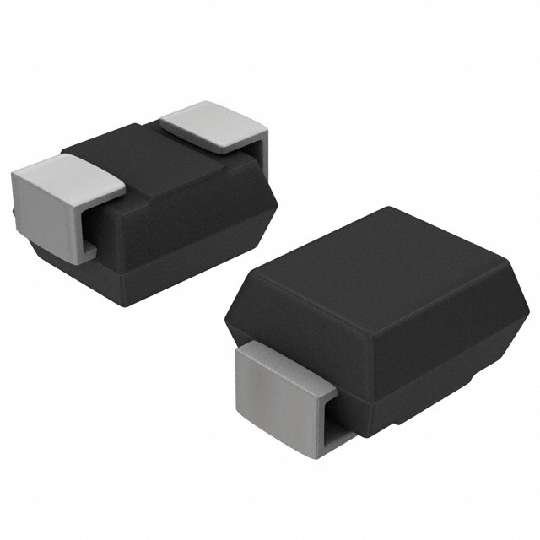

Bourns offers Schottky Rectifier Diodes for rectification applications, in compact chip package DO-214AA SMB size format, which offer PCB real estate savings and are considerably smaller than competitive parts. The Schottky Rectifier Diodes offer a forward current of 2 A with a choice of repetitive peak reverse voltage of 20 V up to 60 V.

Features

■ Lead free versions available

.

■ Reverse voltage from 20 to 60 V

■ Forward current of 2 A

■ High current capability

■ For use in low voltage high frequency inverters, free wheeling and polarity protection applications
