CM1426-08CP

液晶显示器和照相机的EMI滤波器阵列与ESD保护 LCD and Camera EMI Filter Array with ESD Protection

Product Description

The CM1426 is a family of pi-style EMI filter arrays with ESD protection, which integrates four, six and eight filters C-R-C in a Chip Scale Package with 0.50mm pad pitch. The CM1426 has component values of 8.5pF-100Ω-8.5pF per channel. The CM1426 has a cut-off frequency of 230MHz and can be used in applications where the data rates are as high as 92Mbps. The parts include avalanche-type ESD diodes on every pin that provide a very high level of protection for sensitive electronic components against possible ESD strikes. The ESD protection diodes safely dissipate ESD strikes of ±8kV, well beyond the maximum requirement of the IEC61000-4-2 international standard. Using the MIL-STD-883 Method 3015 specification for Human Body Model HBM ESD, the pins are protected for contact discharges at greater than ±15kV.

Features

• Four, six and eight channels of EMI filtering with integrated ESD protection

• 0.5mm pitch, 10-bump, 1.96mm x 1.33mm footprint Chip Scale Package CM1426-04

• 0.5mm pitch, 15-bump, 2.96mm x 1.33mm footprint Chip Scale Package CM1426-06

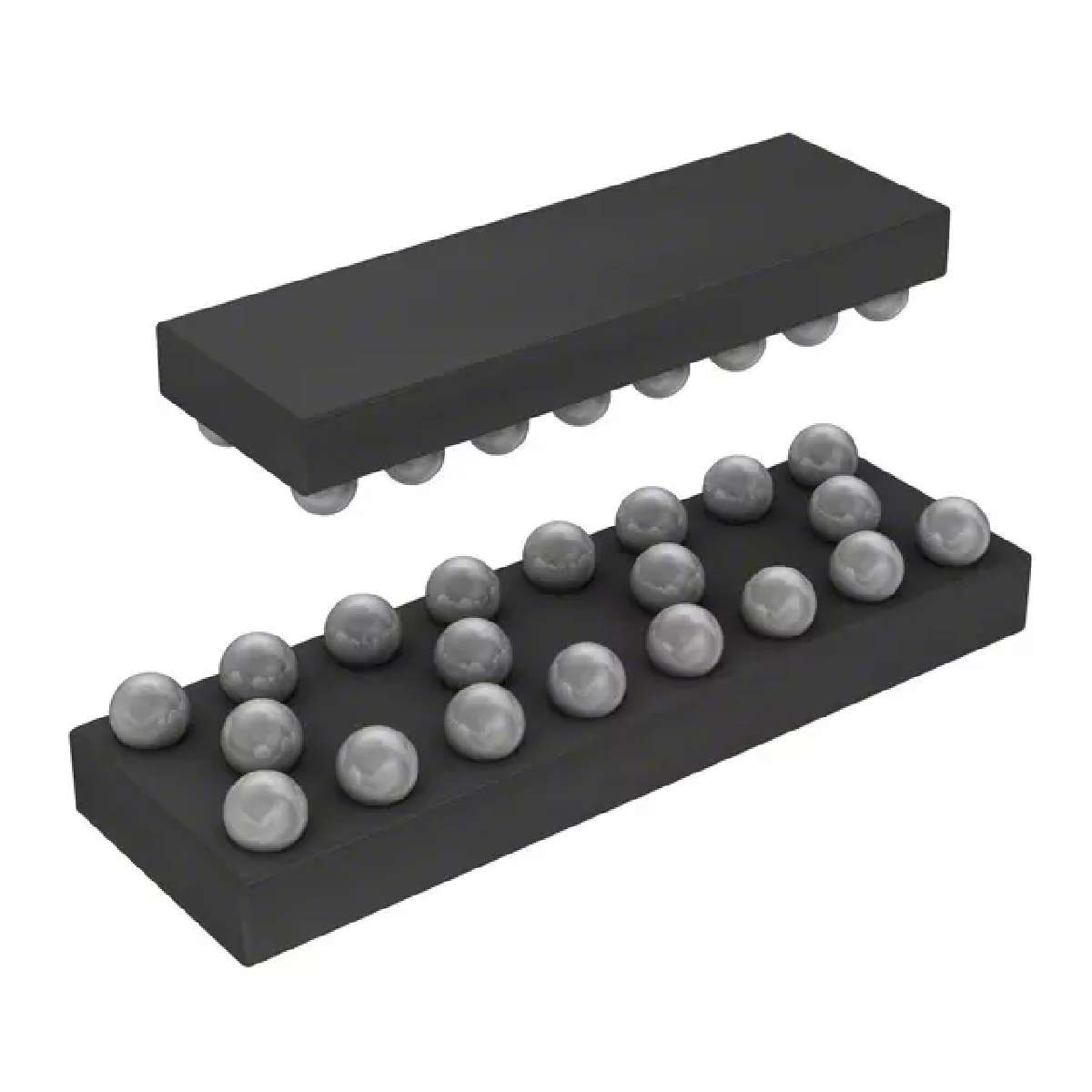

• 0.5mm pitch, 20-bump, 3.96mm x 1.33mm footprint Chip Scale Package CM1426-08

• Pi-style EMI filters in a capacitor-resistor capacitor C-R-C network

• ±8kV ESD protection on each channel IEC 61000-4-2 Level 4, contact discharge

• ±15kV ESD protection on each channel HBM

• Greater than 20dB attenuation typical at 1 GHz

• OptiGuard coated for improved reliability at assembly

• RoHS-compliant, lead-free packaging

Applications

• LCD and camera data lines in mobile handsets

• I/O port protection for mobile handsets, notebook computers, PDAs etc.

• EMI filtering for data ports in cell phones, PDAs or notebook computers.

• Wireless handsets

• Handheld PCs/PDAs

• LCD and camera modules
