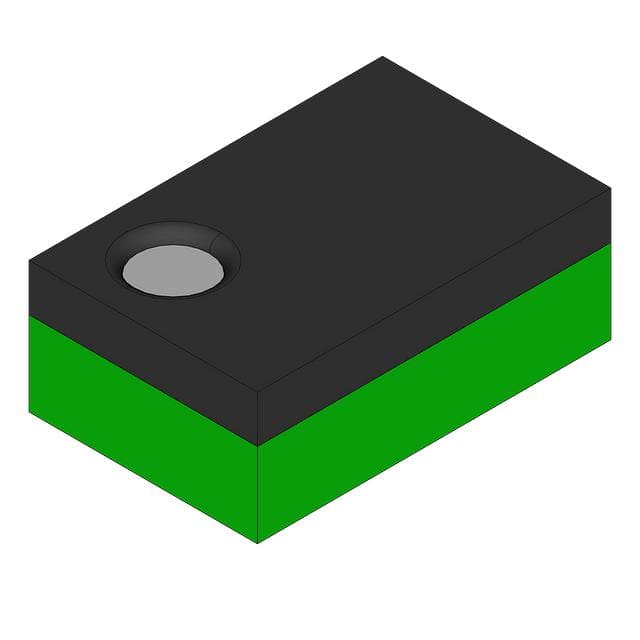

CM1418-02CP图片1

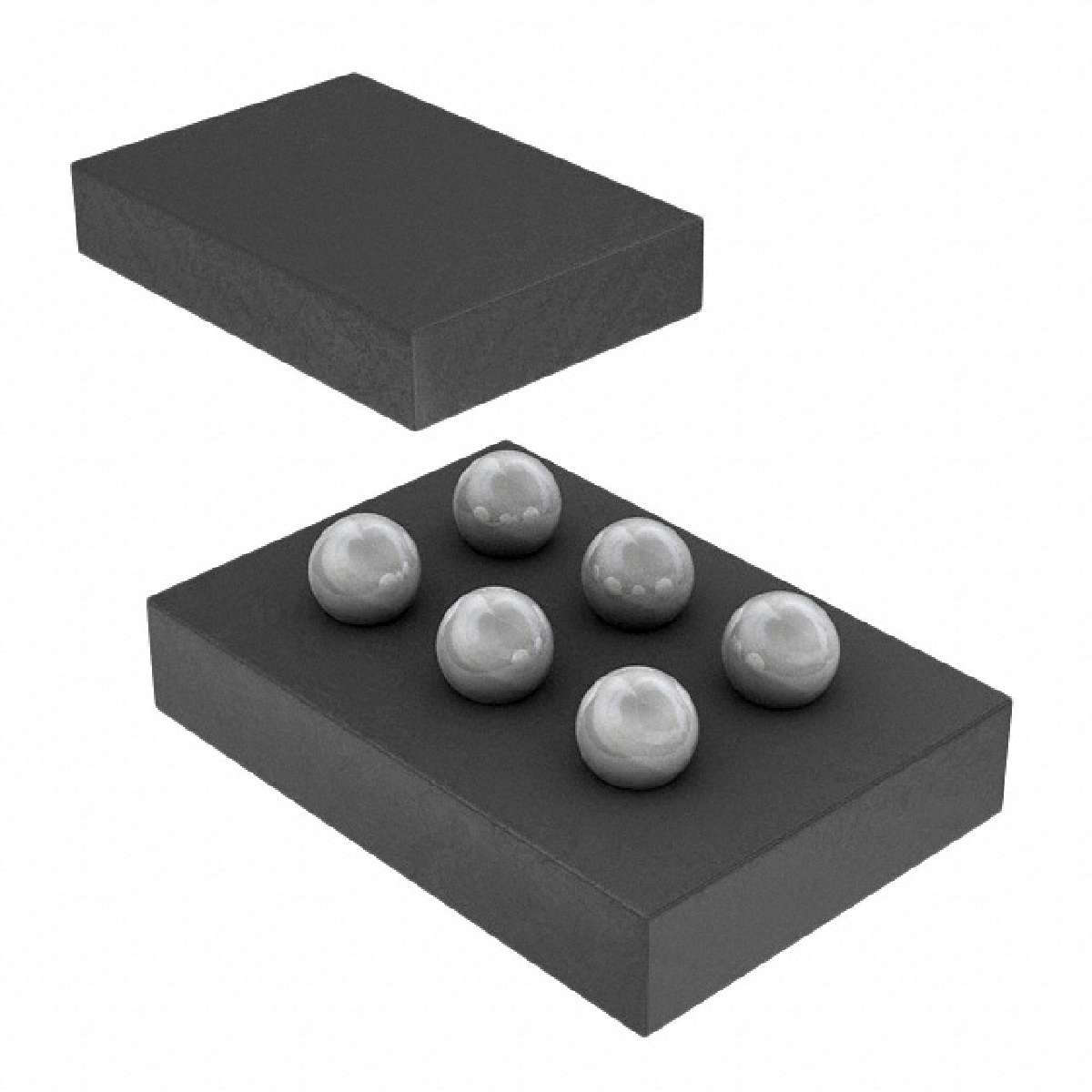

CM1418-02CP图片2
CM1418-02CP图片3
CM1418-02CP图片4
CM1418-02CP图片5
CM1418-02CP图片6
CM1418-02CP概述

禁卫军LC EMI滤波器与ESD保护耳机喇叭 Praetorian L-C EMI Filter with ESD Protection for Headset Speakers

Product Description

The CM1418 is an L-C EMI filter array with ESD protection that integrates two Pi-filters C-L-C for a headset speaker. The CM1418 has component values of 117pF/3.0nH/117pF. The parts include ESD protection diodes on all input/output pins, and provide a very high level of protection for sensitive electronic components against possible electrostatic discharge ESD.

Features

• Two channels of EMI filtering

• ±30kV ESD protection IEC 61000-4-2, contact discharge

• ±30kV ESD protection HBM

• OptiGuard™ Coating for improved reliability at assembly

• Greater than 35dB of attenuation at 1GHz

• 6-bump, 1.720mm x 1.220mm footprint Chip Scale Package CSP

• RoHS-compliant, lead-free finishing

Applications

• Headset Speaker port in mobile handsets

• I/O port protection for mobile handsets, notebook computers, PDAs etc.

• EMI filtering for data ports in cell phones, PDAs or notebook computers.

CM1418-02CP中文资料参数规格
技术参数

通道数 2

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

封装 WFBGA-6

外形尺寸

长度 1.72 mm

宽度 1.22 mm

高度 0.72 mm

封装 WFBGA-6

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

制造应用 移动设备的数据线路

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买CM1418-02CP
型号: CM1418-02CP
描述:禁卫军LC EMI滤波器与ESD保护耳机喇叭 Praetorian L-C EMI Filter with ESD Protection for Headset Speakers
替代型号CM1418-02CP
型号/品牌 代替类型 替代型号对比

CM1418-02CP

ON Semiconductor 安森美

当前型号

当前型号

NUF2441FCT1G

安森美

功能相似

CM1418-02CP和NUF2441FCT1G的区别
