0402 1uF ±10% 10V X5R
1µF ±10% 10V Ceramic Capacitor X5R 0402 1005 Metric
得捷:
CAP CER 1UF 10V X5R 0402
立创商城:
1uF ±10% 10V
艾睿:
This CGB2A1X5R1A105K033BC multilayer ceramic capacitor from TDK is non-polarized so it may be connected either to positive or to negative voltage. It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its capacitance value is 1uF. This product is 1 mm long, 0.33 mm tall and 0.5 mm deep. It has a tolerance of 10%.
额定电压DC 10 V
电容 1 µF
容差 ±10 %
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 1005
封装 0402

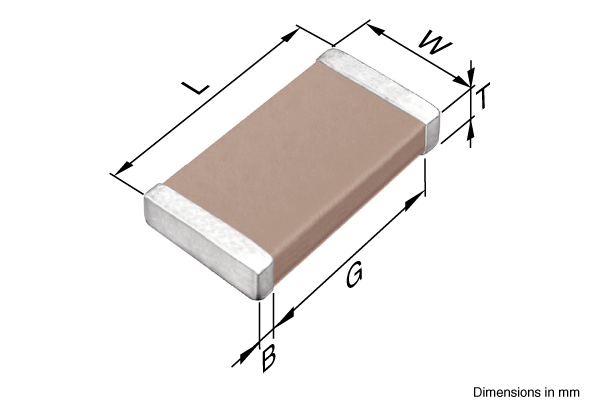

长度 1 mm
宽度 0.5 mm
高度 0.33 mm
封装公制 1005
封装 0402
厚度 0.3 mm
材质 X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 Commercial Grade, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CGB2A1X5R1A105K033BC TDK 东电化 | 当前型号 | 当前型号 |
CGB2A1X5R1A105M033BC 东电化 | 类似代替 | CGB2A1X5R1A105K033BC和CGB2A1X5R1A105M033BC的区别 |
CGB2A1X5R1E105K033BC 东电化 | 功能相似 | CGB2A1X5R1A105K033BC和CGB2A1X5R1E105K033BC的区别 |
CGB2A1X5R1C105K033BC 东电化 | 功能相似 | CGB2A1X5R1A105K033BC和CGB2A1X5R1C105K033BC的区别 |
