0805 1uF ±20% 25V X7R
±20% 25V 陶瓷器 X7R 0805（2012 公制）
得捷:
CAP CER 1UF 25V X7R 0805
立创商城:
1uF ±20% 25V
艾睿:

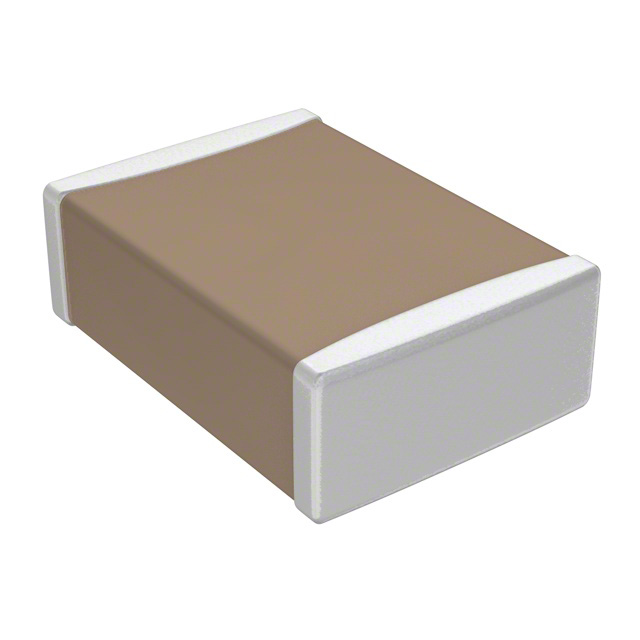

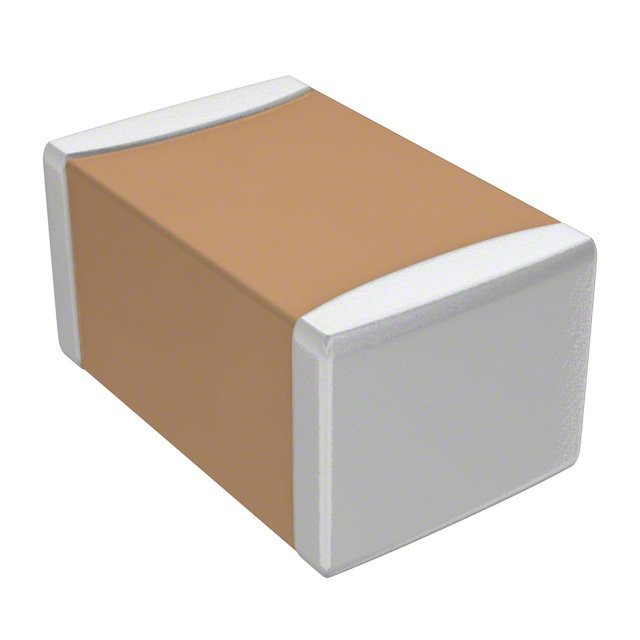

With alternating layers of ceramic acting as the dielectric and electrodes, this C2012X7R1E105M085AB multilayer ceramic capacitor from TDK achieves a large capacitance in a small package. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 20%. Its capacitance value is 1uF. This product is 2 mm long, 0.85 mm tall and 1.25 mm deep.
安富利:
Cap Ceramic 1uF 25V X7R 20% SMD 0805 125°C Punched Paper T/R
Verical:
Cap Ceramic 1uF 25V X7R 20% Pad SMD 0805 125C Low ESR T/R
额定电压DC 25.0 V
电容 1 µF
容差 ±20 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.00 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
厚度 0.85 mm
材质 X7R/-55℃~+125℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Please refer to Part No., 通用, for Automotive use., Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C2012X7R1E105M085AB TDK 东电化 | 当前型号 | 当前型号 |
C2012X7R1E105M125AB 东电化 | 完全替代 | C2012X7R1E105M085AB和C2012X7R1E105M125AB的区别 |
C2012X7R1C105M085AC 东电化 | 功能相似 | C2012X7R1E105M085AB和C2012X7R1C105M085AC的区别 |
C2012X7R1A105M 东电化 | 功能相似 | C2012X7R1E105M085AB和C2012X7R1A105M的区别 |
