低电压10位FET总线开关 LOW-VOLTAGE 10-BIT FET BUS SWITCH
The SN74CBTLV3861 provides ten bits of high-speed bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
The device is organized as one 10-bit bus switch. When output enable OE is low, the 10-bit bus switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the two ports.
This device is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
电源电压DC 2.30V ~ 3.60V
位数 10
传送延迟时间 250 ps
电压波节 3.30 V, 2.50 V
带宽 200 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 24

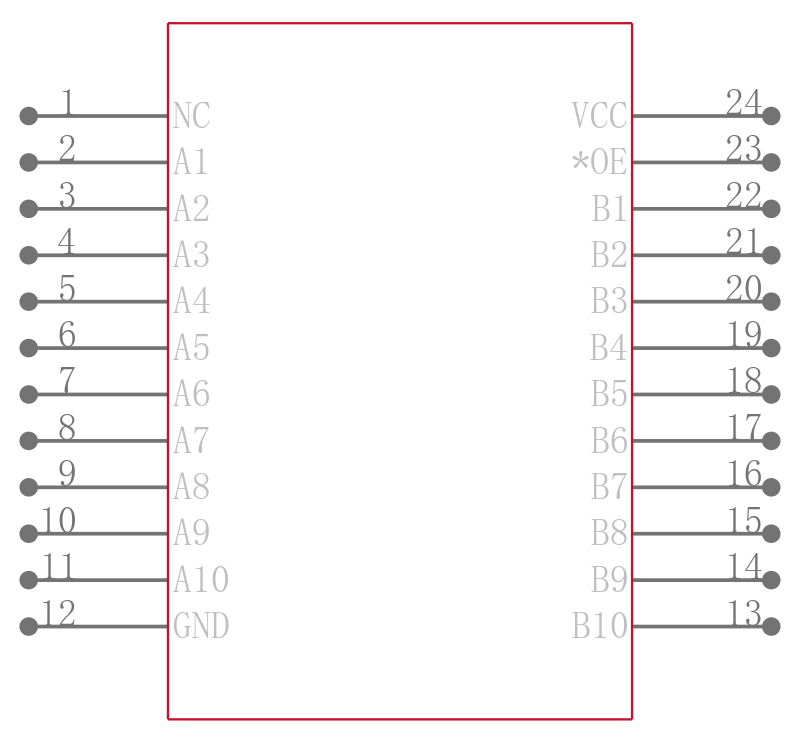

封装 TSSOP-24
封装 TSSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
