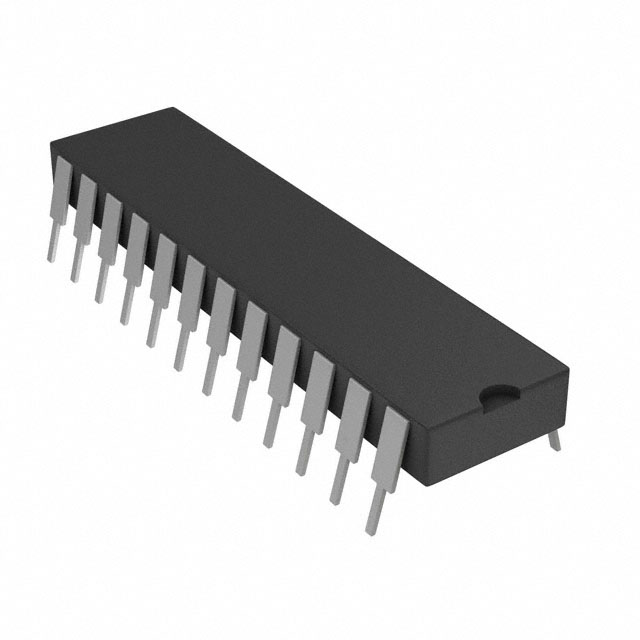

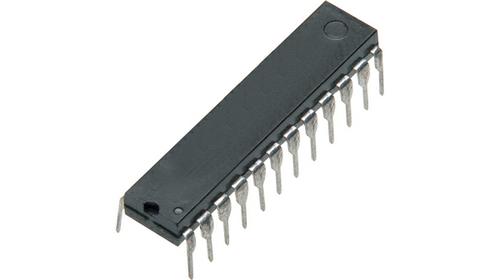

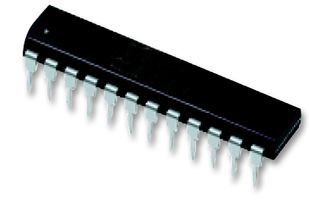

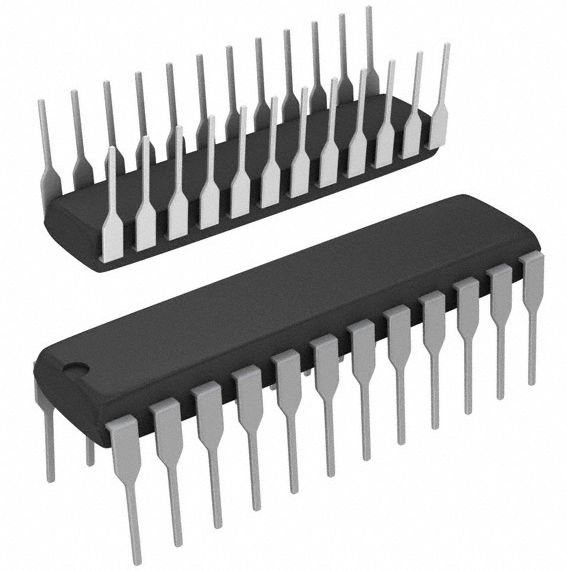

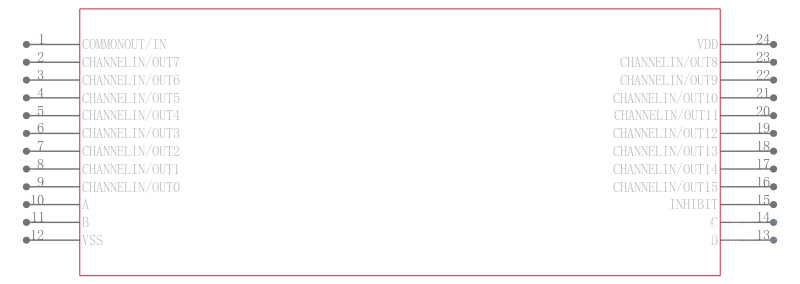

TEXAS INSTRUMENTS CD4067BE 芯片, 模拟多路复用器/信号分离器
The is a CMOS single 16-channel Analogue Multiplexer which digitally controlled analogue switch having low ON impedance, low OFF leakage current and internal address decoding. In addition, the ON resistance is relatively constant over the full input-signal range. The CD4067B is a 16-channel multiplexer with four binary control inputs, A, B, C, D and an inhibit input, arranged so that any combination of the inputs selects one switch. A logic "1" present at the inhibit input turns all channels off.
- .
- 125R Typical low on resistance
- .
- Binary address decoding on chip
- .
- 100% Tested for quiescent current at 20V
数字逻辑电平 CMOS
电源电压DC 15.0 V
供电电流 100 µA
电路数 1
通道数 16
针脚数 24
漏源极电阻 470 Ω
位数 16
极性 Non-Inverting
电压波节 5.00 V, 10.0 V, 15.0 V
耗散功率 500 mW
静态电流 80.0 nA
输入电容 5.00 pF
工作温度Max 125 ℃
工作温度Min -55 ℃
3dB带宽 14 MHz
耗散功率Max 500 mW
电源电压 3V ~ 18V
安装方式 Through Hole
引脚数 24
封装 DIP-24
封装 DIP-24
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2018/06/27
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD4067BE TI 德州仪器 | 当前型号 | 当前型号 |
CD4067BM96E4 德州仪器 | 完全替代 | CD4067BE和CD4067BM96E4的区别 |
CD4067BEE4 德州仪器 | 类似代替 | CD4067BE和CD4067BEE4的区别 |
CD74HC4067EE4 德州仪器 | 类似代替 | CD4067BE和CD74HC4067EE4的区别 |
