0603 220nF ±20% 50V X5R
0.22µF ±20% 50V Ceramic Capacitor X5R 0603 1608 Metric
得捷:
CAP CER 0.22UF 50V X5R 0603
立创商城:
220nF ±20% 50V
艾睿:

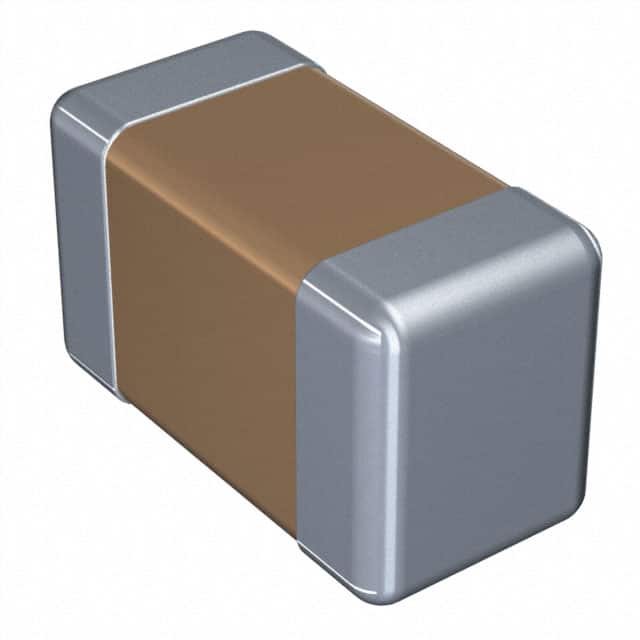

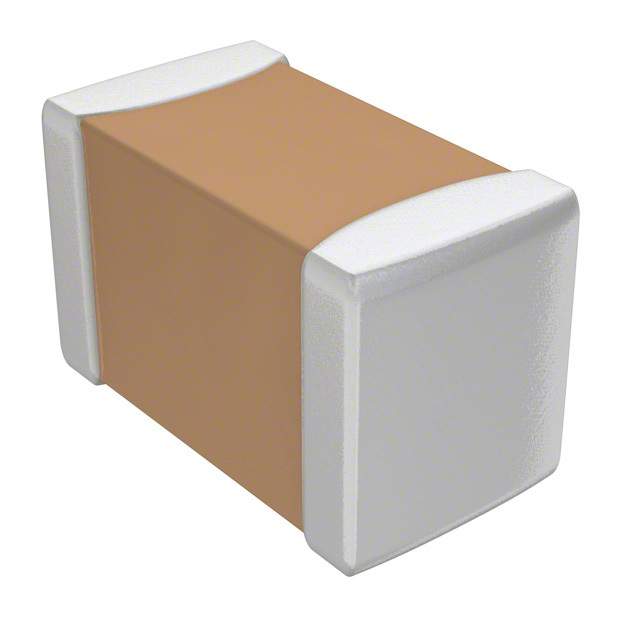

This C1608X5R1H224M080AB multilayer ceramic capacitor from TDK offers high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 0.22uF. It has a tolerance of 20%.
Verical:
Cap Ceramic 0.22uF 50V X5R 20% Pad SMD 0603 85C Low ESR T/R
额定电压DC 50.0 V
电容 220000 PF
容差 ±20 %
电介质特性 X5R
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603

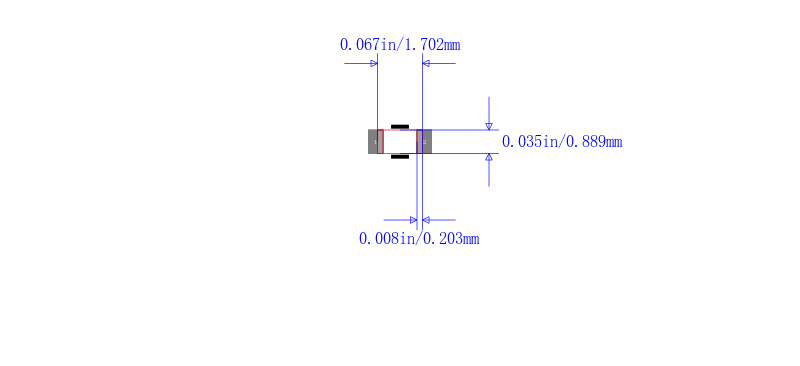

长度 1.60 mm
宽度 800 µm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 X5R/-55℃~+85℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 85℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Commercial Grade, for Automotive use., 通用, Please refer to Part No.
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C1608X5R1H224M080AB TDK 东电化 | 当前型号 | 当前型号 |
C1608X5R1H224K080AB 东电化 | 类似代替 | C1608X5R1H224M080AB和C1608X5R1H224K080AB的区别 |
C1608X5R1A224M 东电化 | 类似代替 | C1608X5R1H224M080AB和C1608X5R1A224M的区别 |
C1608X5R1H224MT 东电化 | 类似代替 | C1608X5R1H224M080AB和C1608X5R1H224MT的区别 |
