CY2309CSXC-1T

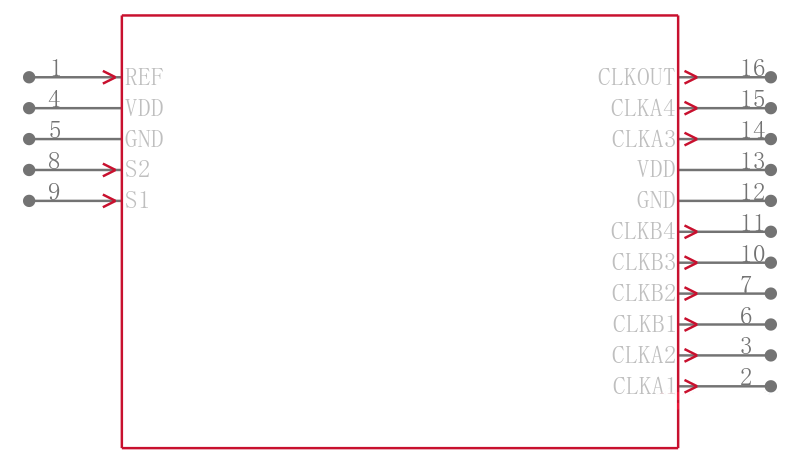

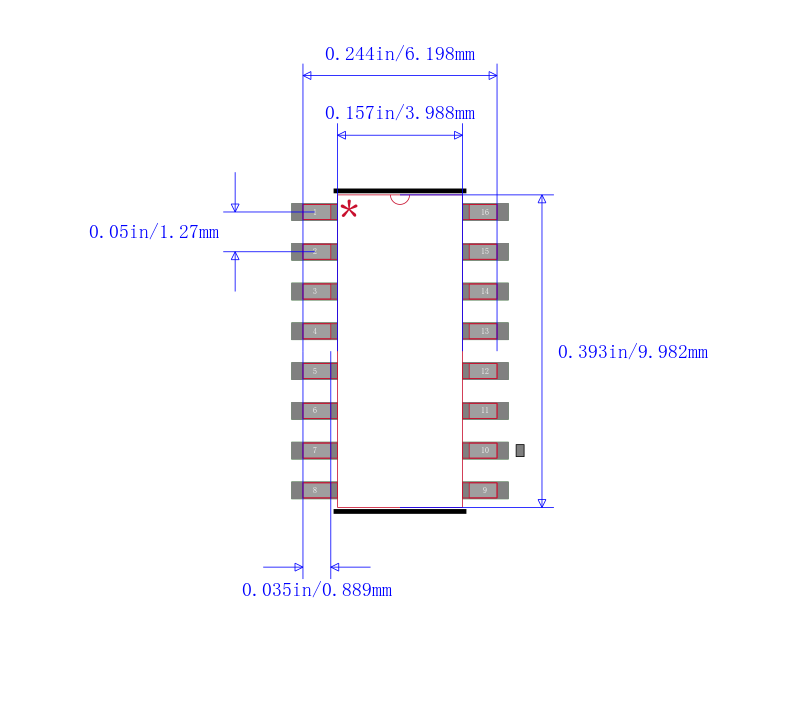

CY2309C 系列 单PLL 3.3 V 133 MHz 零延时时钟缓冲器 表面贴装 - SOIC-16

Functional Description

The CY2305C and CY2309C are die replacement parts for CY2305 and CY2309. The CY2309C is a low-cost 3.3 V zero delay buffer designed to distribute high speed clocks and is available in a 16-pin SOIC or TSSOP package. The CY2305C is an 8-pin version of the CY2309C. It accepts one reference input and drives out five low skew clocks. The -1H versions of each device operate up to 100–133 MHz frequencies and have higher drive than the -1 devices. All parts have on-chip phase locked loops PLLs which lock to an input clock on the REF pin. The PLL feedback is on-chip and is obtained from the CLKOUT pad.

Features

■10 MHz to 100–133 MHz operating range

■Zero input and output propagation delay

■Multiple low skew outputs

■One input drives five outputs CY2305C

■One input drives nine outputs, grouped as 4 + 4 + 1 CY2309C

■50 ps typical cycle-to-cycle jitter 15 pF, 66 MHz
