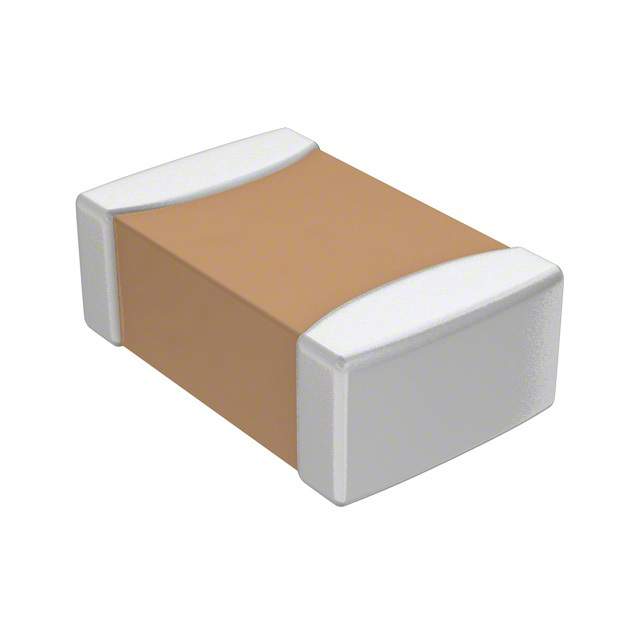

0805 1nF ±5% 100V NPO
1000 pF ±5% 100V 陶瓷器 C0G，NP0 0805（2012 公制）
得捷:
CAP CER 1000PF 100V NP0 0805
立创商城:
1nF ±5% 100V
艾睿:
Use TDK&s;s C2012NP02A102J060AA multilayer ceramic capacitor for various purposes in multiple applications. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 5%. Its capacitance value is 0.001uF. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep.
Verical:
Cap Ceramic 0.001uF 100V C0G 5% Pad SMD 0805 150C T/R
额定电压DC 100 V
电容 1000 PF
容差 ±5 %
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.2 mm
高度 0.6 mm
封装公制 2012
封装 0805
厚度 0.6 mm
材质 NP0/-55℃~+125℃
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Commercial Grade, for Automotive use., 通用, Please refer to Part No.
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C2012NP02A102J060AA TDK 东电化 | 当前型号 | 当前型号 |
C2012C0G2A102J060AA 东电化 | 类似代替 | C2012NP02A102J060AA和C2012C0G2A102J060AA的区别 |
CGA4C2C0G2A102J060AA 东电化 | 类似代替 | C2012NP02A102J060AA和CGA4C2C0G2A102J060AA的区别 |
C2012C0G1H102J060AA 东电化 | 功能相似 | C2012NP02A102J060AA和C2012C0G1H102J060AA的区别 |
