1206 68pF ±10% 630V C0G
68 pF ±10% 630V 陶瓷器 C0G,NP0 1206(3216 公制)
得捷:
CAP CER 68PF 630V NP0 1206
艾睿:

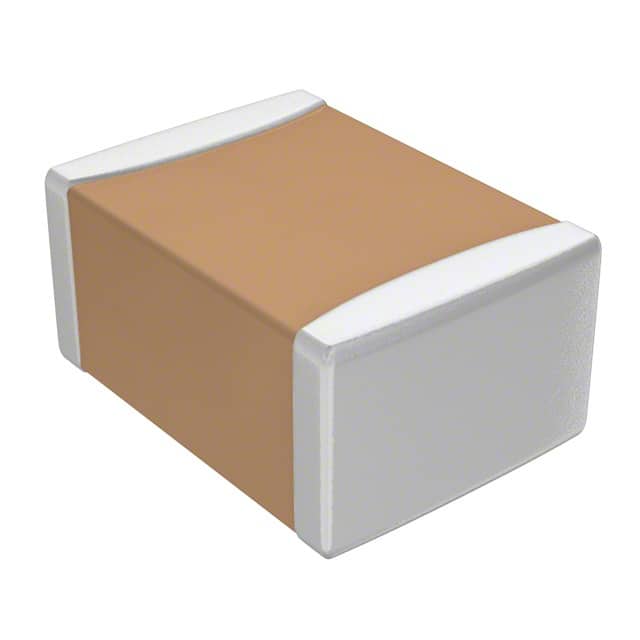

Since this CL31C680KHFNNNF multilayer ceramic capacitor from Samsung Electro-Mechanics has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 3.2 mm long, 1.25 mm tall and 1.6 mm deep. It has a tolerance of 10%. Its capacitance value is 68pF.
Verical:
Cap Ceramic 68pF 630V C0G 10% Pad SMD 1206 125C T/R
额定电压DC 630 V
电容 68 pF
容差 ±10 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.25 mm
封装公制 3216
封装 1206
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL31C680KHFNNNF Samsung 三星 | 当前型号 | 当前型号 |
C0603C0G101-680JNE Venkel | 功能相似 | CL31C680KHFNNNF和C0603C0G101-680JNE的区别 |
