C0402C102K3GACTU

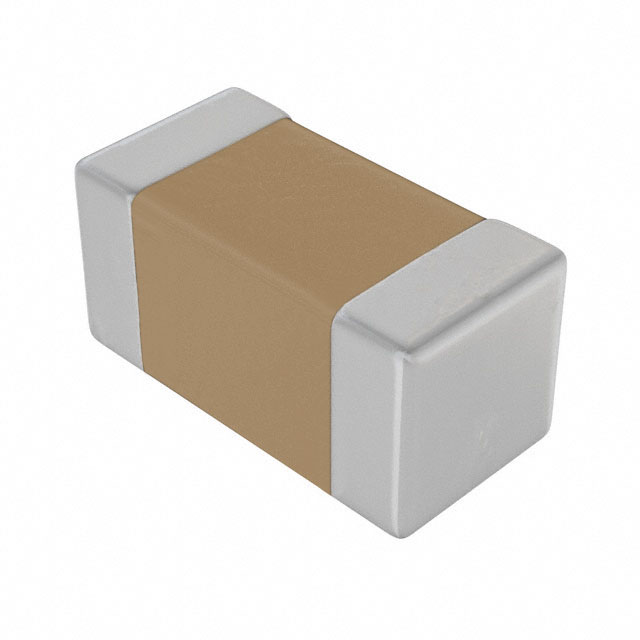

C0402C102K3GACTU图片1
C0402C102K3GACTU图片2
C0402C102K3GACTU图片3
C0402C102K3GACTU图片4
C0402C102K3GACTU图片5
C0402C102K3GACTU概述

Cap Ceramic 0.001uF 25V C0G 10% SMD 0402 125℃ T/R

SMD Comm C0G, Ceramic, Commercial Grade, 1000 pF, 10%, 25 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0402


得捷:
CAP CER 1000PF 25V NP0 0402


艾睿:
Due to the use of different ceramic dielectric materials used in this C0402C102K3GACTU multilayer ceramic capacitor from Kemet, you can choose the right capacitor based on capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 10%. Its capacitance value is 0.001uF. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep.


安富利:
Cap Ceramic 0.001uF 25VDC C0G 10% SMD 0402 Paper T/R


Verical:
Cap Ceramic 0.001uF 25V C0G 10% Pad SMD 0402 125C Extreme Low ESR T/R


C0402C102K3GACTU中文资料参数规格
技术参数

额定电压DC 25.0 V

绝缘电阻 100 GΩ

电容 0.001 µF

容差 ±10 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 25 V

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

引脚间距 0.3 mm

外形尺寸

长度 1 mm

宽度 1 mm

高度 0.5 mm

封装公制 1005

封装 0402

引脚间距 0.3 mm

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

C0402C102K3GACTU引脚图与封装图
C0402C102K3GACTU引脚图
C0402C102K3GACTU封装图

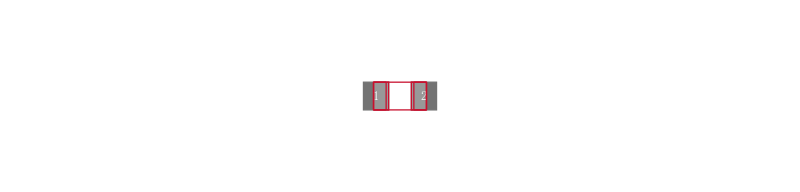

C0402C102K3GACTU封装焊盘图
在线购买C0402C102K3GACTU
型号: C0402C102K3GACTU
描述:Cap Ceramic 0.001uF 25V C0G 10% SMD 0402 125℃ T/R
