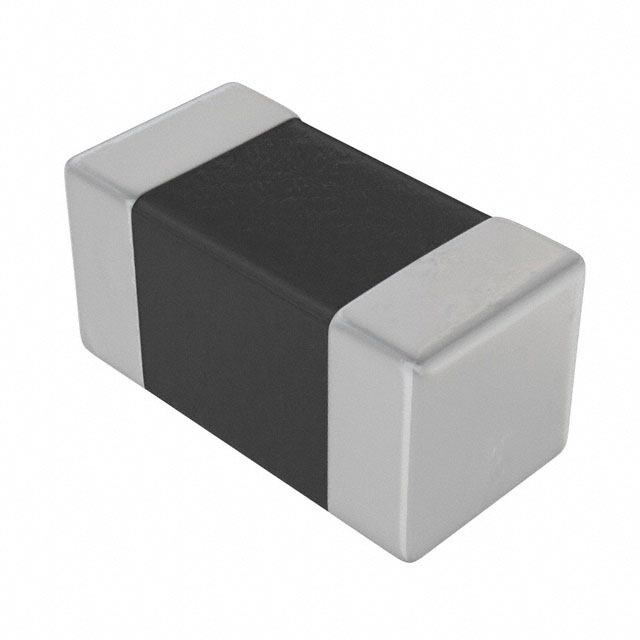

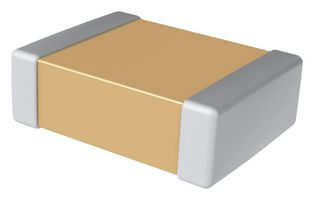

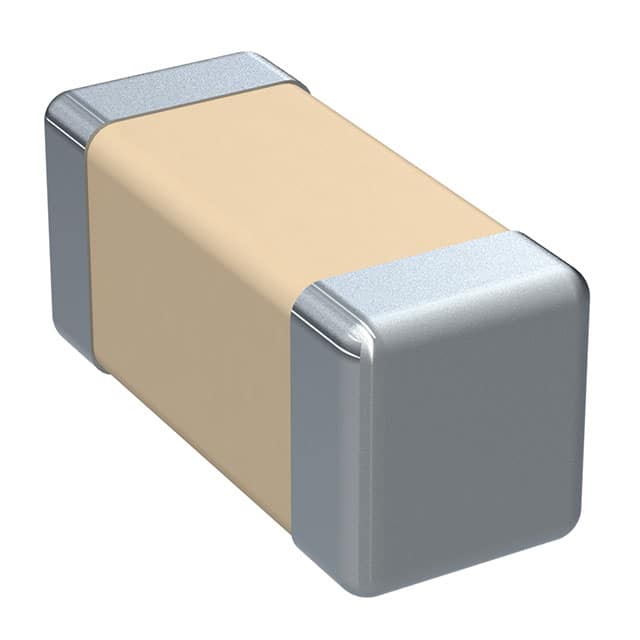

多层陶瓷电容器, 表面贴装, 0.39 µF, 10 V, 0603 [1608 公制], ± 10%, X5R, C系列KEMET
* **Working Voltage:**
10, 16, 25, 50, 100 & 200V
* **Dielectric:**
C0G NP0, X7R, X5R, Z5U & Y5V
* ** Tolerance: **
±0.10pF; ±0.25pF; ±0.5pF; ±1%; ±2%; ±5%; ±10%; ±20% & ±80%-20%
Ceramic chips consist of formulated ceramic dielectric materials which have been fabricated into thin layers, interspersed with metal electrodes alternately exposed on opposite edges of the laminated structure. The entire structure is then fired at high temperature to produce a monolithic block which provides high capacitance values in a small physical volume. After firing, conductive terminations are applied to opposite ends of the chip to make contact with the exposed electrodes. Kemet ceramic chip capacitors are offered in the five most popular temperature characteristics: C0G NP0 ,X7R, X5R,Z5U & Y5V.
额定电压DC 10.0 V
绝缘电阻 1.282 GΩ
电容 0.39 µF
容差 ±10 %
电介质特性 X5R
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 1608
封装 0603
引脚间距 0.7 mm
长度 1.60 mm
宽度 1.6 mm
高度 0.8 mm
封装公制 1608
封装 0603
引脚间距 0.7 mm
介质材料 Ceramic
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0603C394K8PACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C0603C394K4PACTU 基美 | 功能相似 | C0603C394K8PACTU和C0603C394K4PACTU的区别 |
ECJ-1VB0J394K 松下 | 功能相似 | C0603C394K8PACTU和ECJ-1VB0J394K的区别 |
