双1号线到4线时钟驱动器与3态输出 DUAL 1-LINE TO 4-LINE CLOCK DRIVER WITH 3-STATE OUTPUTS
The CDC208 contains dual clock-driver circuits that fanout one input signal to four outputs with minimum skew for clock distribution see Figure 2. The device also offers two output-enable OE1\ and OE2\\\\ inputs for each circuit that can force the outputs to be disabled to a high-impedance state or to a high- or low-logic level independent of the signal on the respective A input.
Skew parameters are specified for a reduced temperature and voltage range common to many applications.
The CDC208 is characterized for operation from -40°C to 85°C.
频率 60.0 MHz
电源电压DC 5.00 V
输出接口数 8
供电电流 8.00 µA
电路数 2
时钟频率 60.0 MHz
耗散功率 1600 mW
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1600 mW
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

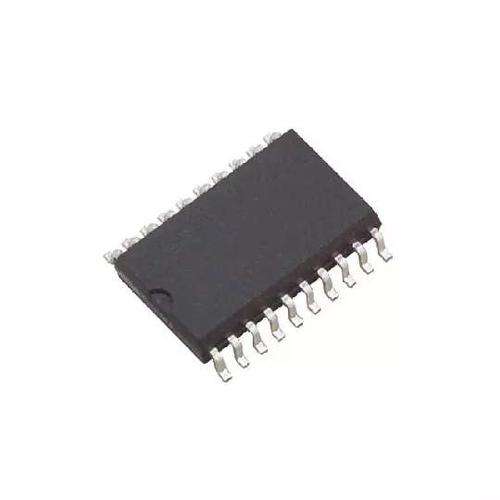

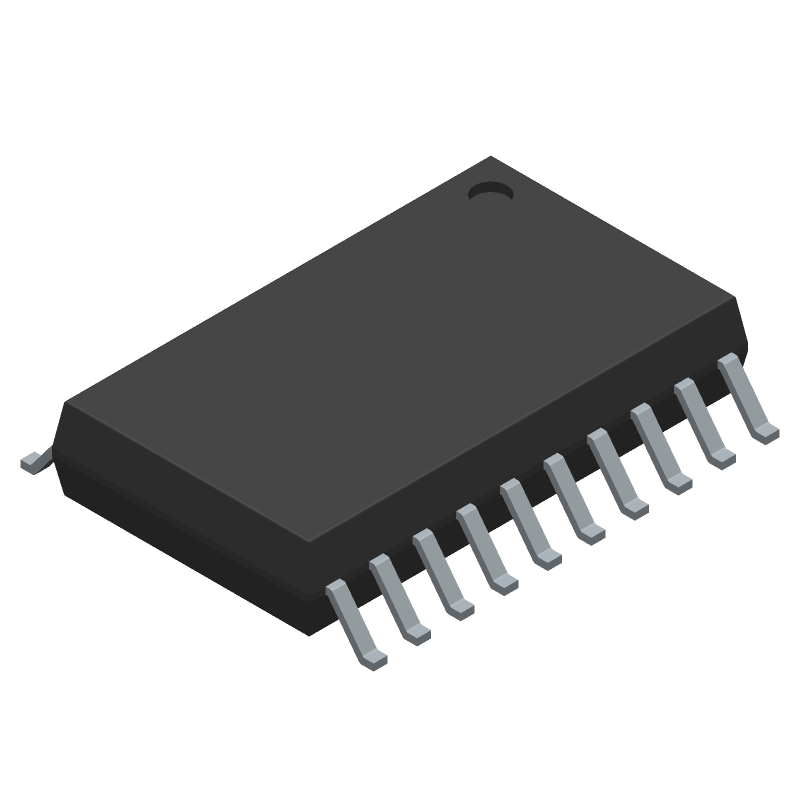

封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDC208DW TI 德州仪器 | 当前型号 | 当前型号 |
CDC208DWR 德州仪器 | 完全替代 | CDC208DW和CDC208DWR的区别 |
CDC208DWG4 德州仪器 | 类似代替 | CDC208DW和CDC208DWG4的区别 |
CDC208DWRG4 德州仪器 | 类似代替 | CDC208DW和CDC208DWRG4的区别 |
