CC2530DK

TEXAS INSTRUMENTS  CC2530DK  受限产品, 开发套件, CC2530

2.4GHz Wireless SoC Development Kit

The

.

*CC2530DK** Development Kit can be used for evaluating the performance of the CC2530 2.4GHz wireless System-on-Chip. The CC2530DK comes with a ZigBee compliant Z-Stack supporting ZigBee, ZigBee PRO, and the Smart Energy and Home Automation application profiles. The CC2530DK is supported by the IAR EW8051 C-compiler, which is used with ZStack. The C-SPY debugger is used as an emulator interface. Both the C-compiler and the C-SPY debugger are included in the development kit as 30-day evaluation licenses. By registering the compiler with IAR, a 30-day extension of the license can be obtained.

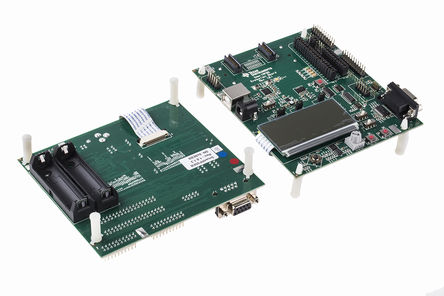

**SmartRF05EB Evaluation Board**

3 line x16 character LCD panel

Full-Speed USB 2.0 interface and connector

RS-232 serial bus with flow control via DE9 connector

4 x user LEDs

Potentiometer

Thumb joystick

Reset and Power pushbuttons

User pushbutton

Header for CC2530EM Evaluation Module

Powered from USB, barrel connector or 2 x AA batteries

**CC2530EM Evaluation Module**

CC2530 device

Antenna matching filter components

Antenna SMA connector

**CC2531 USB Dongle**

Fully operational USB device that can be plugged into a PC

2 x LEDs

2 x pushbuttons

Connector pads for external sensors

10-pin program/debug header

Pre-programmed as a packet sniffer

**RS Product Codes for CC2530 Devices**

698-6991 CC2530F128RHAT 128KB Flash memory

698-7004 CC2530F256RHAT 256KB Flash memory

### 随附

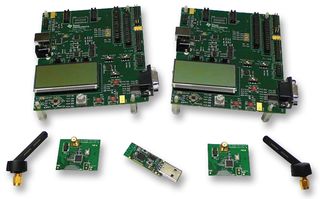

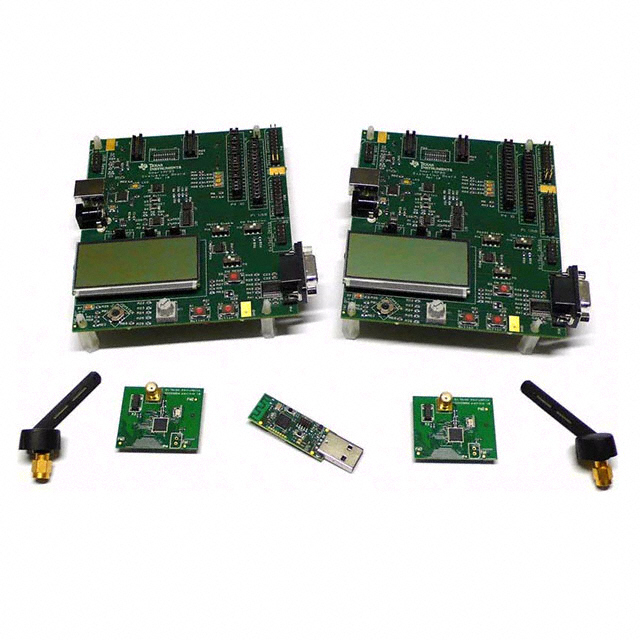

2 x SmartRF05EB Evaluation Boards , 2 x CC2530EM Evaluation Modules , CC2531 USB Dongle , 2 x Antennas, cables, IAR EW8051 C-compiler with C-SPY debugger 30+30 day evaluation license
