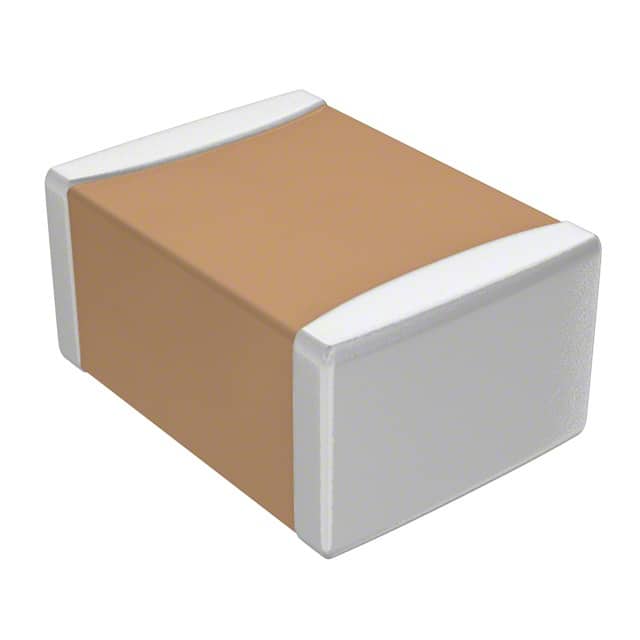

1206 150pF ±5% 630V C0G
±5% 630V 陶瓷器 C0G,NP0 1206(3216 公制)
得捷:
CAP CER 150PF 630V NP0 1206
艾睿:
This CL31C151JHFNNNF multilayer ceramic capacitor from Samsung Electro-Mechanics has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its capacitance value is 150pF. This product is 3.2 mm long, 1.25 mm tall and 1.6 mm deep. It has a tolerance of 5%.
Verical:
Cap Ceramic 150pF 630V C0G 5% Pad SMD 1206 125C T/R
额定电压DC 630 V
电容 150 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.25 mm
封装公制 3216
封装 1206
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL31C151JHFNNNF Samsung 三星 | 当前型号 | 当前型号 |
CL31C151JHFNNNE 三星 | 完全替代 | CL31C151JHFNNNF和CL31C151JHFNNNE的区别 |
C3216C0G2J151J060AA 东电化 | 类似代替 | CL31C151JHFNNNF和C3216C0G2J151J060AA的区别 |
1206CA151JAT1A 艾维克斯 | 类似代替 | CL31C151JHFNNNF和1206CA151JAT1A的区别 |
