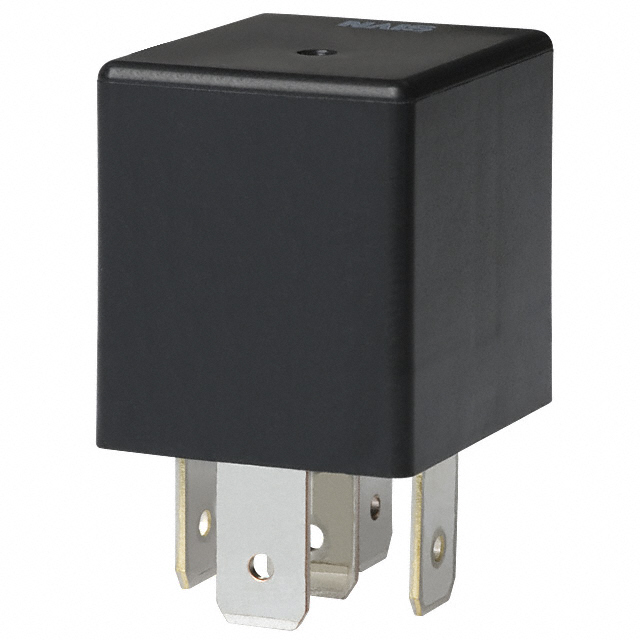

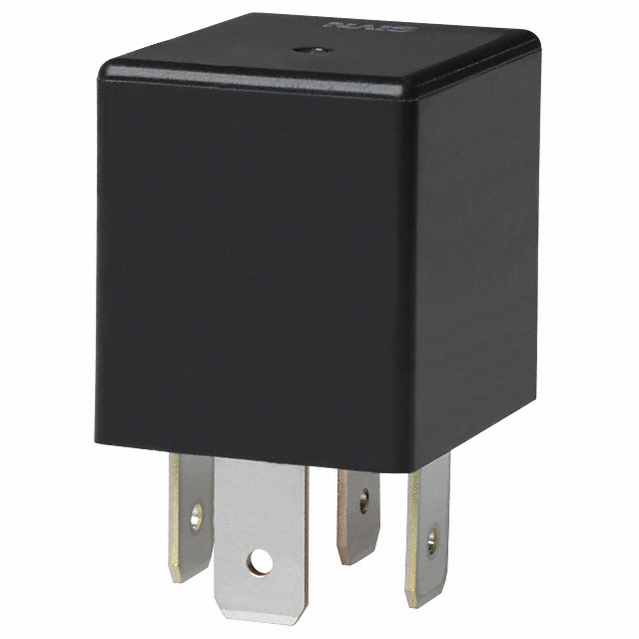

CB 系列 30 A 单刀单掷 24 VDC 插入式 汽车 继电器
CB Series 30 A SPST 24 VDC Plug-In Automotive Relay
得捷:
RELAY AUTOMOTIVE SPST 20A 24V
艾睿:
Electromechanical Relay 24VDC 320Ohm 20A SPST-NO 26mm 22mm 36mm Plug-In Automotive Relay Automotive
安富利:
Electromechanical Relay SPST-NO 20A 24VDC 320Ohm Plug-In
Chip1Stop:
Electromechanical Relay SPST-NO 20A 24VDC 320Ohm Plug-In
Verical:
Relays 24VDC 320Ohm 20A SPST-NO26mm 22mm 36mm Plug-In Automotive Relay Automotive
Newark:
# PANASONIC ELECTRIC WORKS CB1A-24V Automotive Relay, SPST-NO, 24 VDC, 20 A, CB Series, Through Hole, Solder
Electro Sonic:
Relays 24VDC 320Ohm 20A SPST-NO26mm 22mm 36mm Plug-In Automotive Relay Automotive
触点类型 SPST-NO
功耗 1.8 W
触点额定电流 20 A
线圈电压 24 VDC
线圈电流 75 mA
线圈电阻 320 Ω
额定电流Max 20 A
线圈电压DC 24 V
线圈功率 1.8 W
额定功率Max 1.8 W
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Plug In, Quick Connect
引脚数 4
长度 26 mm
宽度 25 mm
高度 36 mm
触点材质 Silver
重量 14.9685492 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
