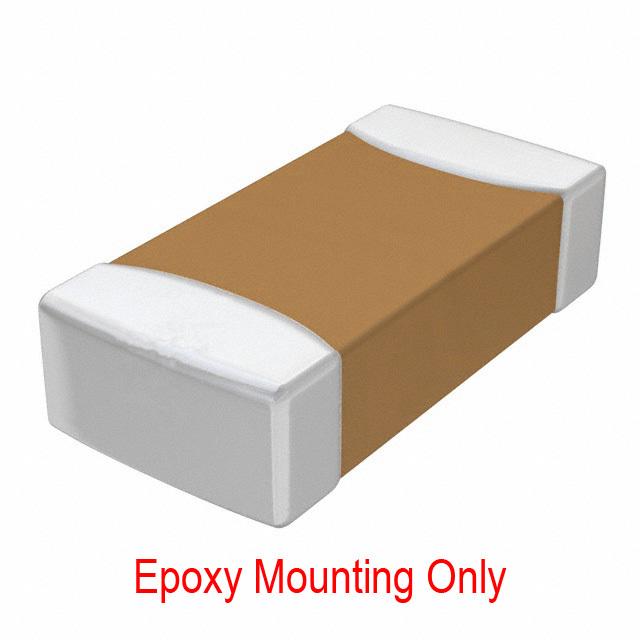

0402 10pF ±0.5pF 50V C0G
10pF ±0.5pF 50V Ceramic Capacitor C0G, NP0 0402 1005 Metric
得捷:
CAP CER 10PF 50V 0402 EPOXY
立创商城:
10pF ±0.5pF 50V
艾睿:
You can use multiple capacitors of different parameters choosing this CGA2B2C0G1H100D050BD multilayer ceramic capacitor from TDK! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its capacitance value is 10pF. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep.
Verical:
Cap Ceramic 10pF 50V C0G 0.5pF Pad SMD 0402 125C Automotive T/R
额定电压DC 50 V
电容 10 pF
容差 ±0.5 pF
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 Automotive Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
