0805 15nF ±10% 100V X7R
±10% 100V 陶瓷器 X7R 0805（2012 公制）
得捷:
CAP CER 0.015UF 100V X7R 0805
立创商城:
15nF ±10% 100V
艾睿:

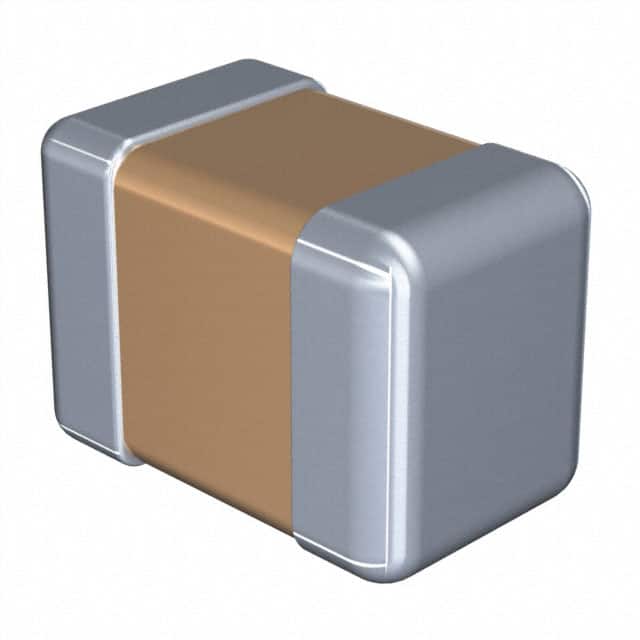

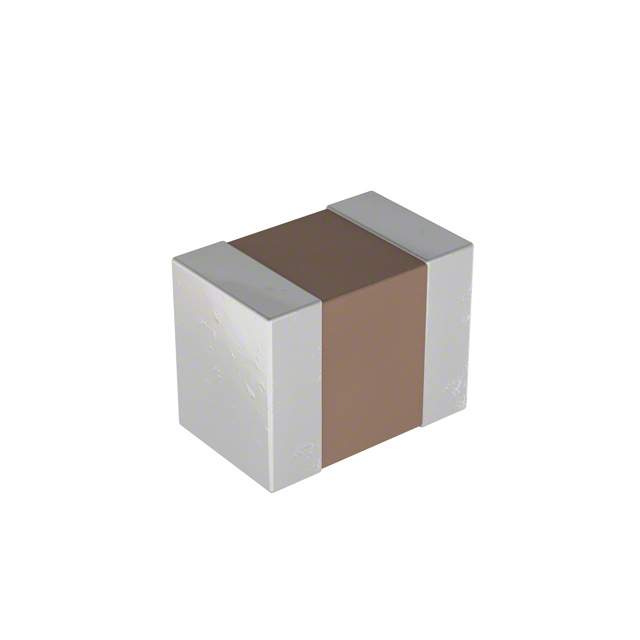

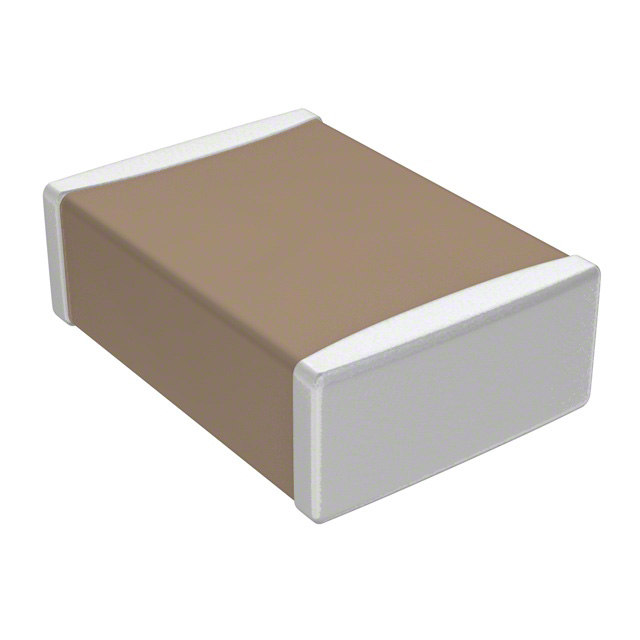

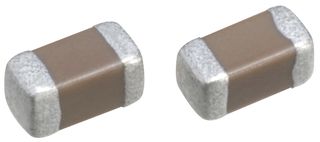

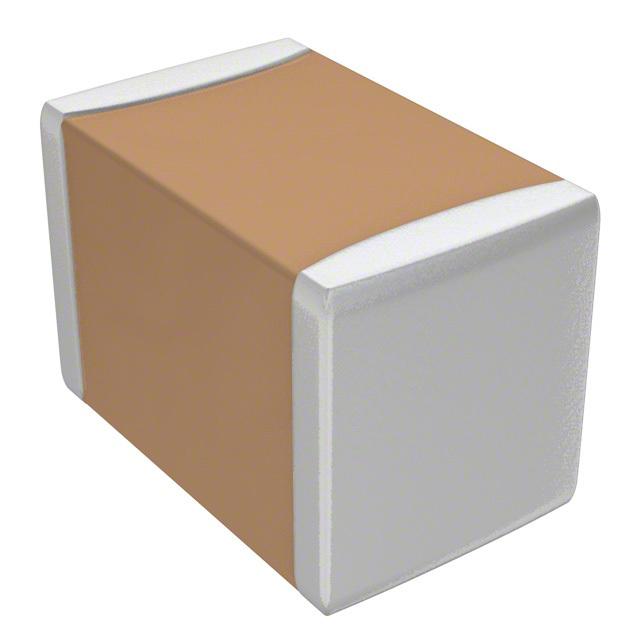

Do you need multiple capacitors for different uses in your electronics project? Look no further, this C2012X7R2A153K125AM multilayer ceramic capacitor from TDK has a multitude of uses for various applications! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep. Its capacitance value is 0.015uF. It has a tolerance of 10%.
额定电压DC 100 V
电容 0.015 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V

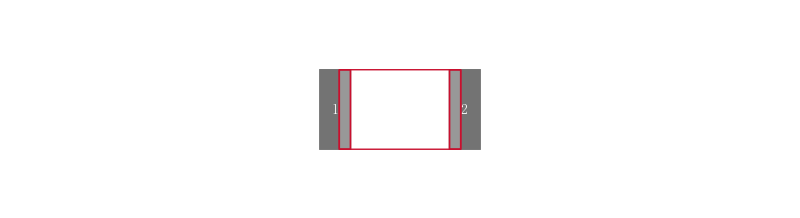

安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
厚度 1.25 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 3000
制造应用 Boardflex 敏感, 通用, Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C2012X7R2A153K125AM TDK 东电化 | 当前型号 | 当前型号 |
C2012X7R2A153K125AA 东电化 | 完全替代 | C2012X7R2A153K125AM和C2012X7R2A153K125AA的区别 |
CGA4J2X7R2A153K125AA 东电化 | 类似代替 | C2012X7R2A153K125AM和CGA4J2X7R2A153K125AA的区别 |
C2012X7R2E153K125AM 东电化 | 类似代替 | C2012X7R2A153K125AM和C2012X7R2E153K125AM的区别 |
