0805 1nF ±20% 50V X7R

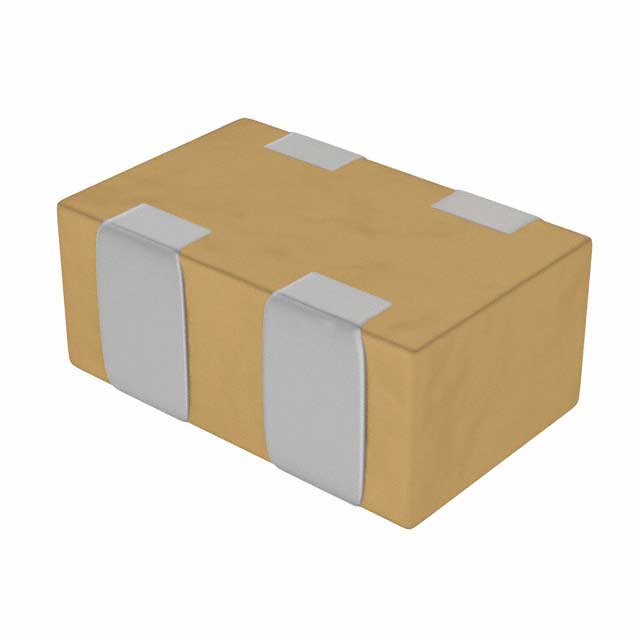

This capacitor bank from consists of a group of capacitors that do not connect with each other. It can withstand a voltage of 50 VDC. This high voltage capacitor bank has a maximum operating temperature of 125 °C. It has 4 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its capacitance value is 0.001uF. This product"s terminal pitch is 1 mm. This product is 2 mm long, 0.85 mm tall and 1.25 mm deep. It has a tolerance of 20%.
额定电压DC 50.0 V
电容 0.001 µF
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 2012
封装 0805

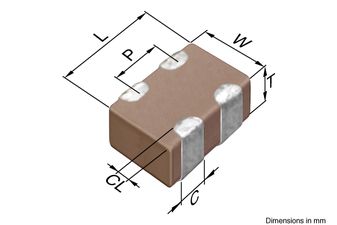

长度 2 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
材质 Ceramic
工作温度 55℃ ~ 125℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
