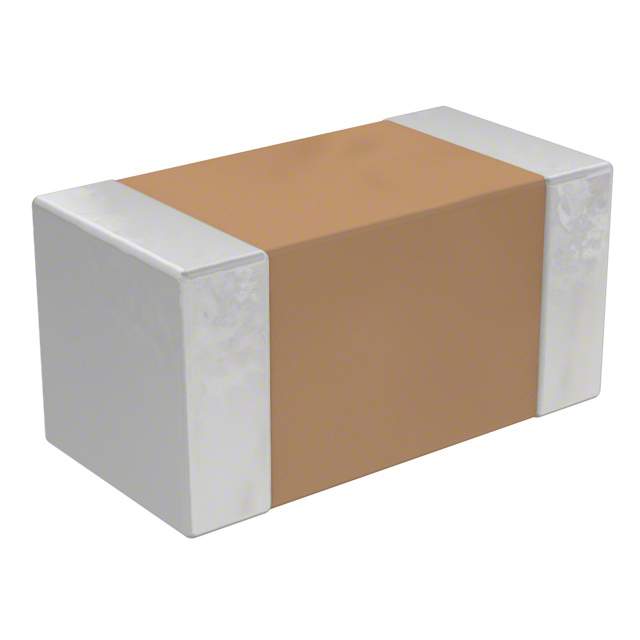

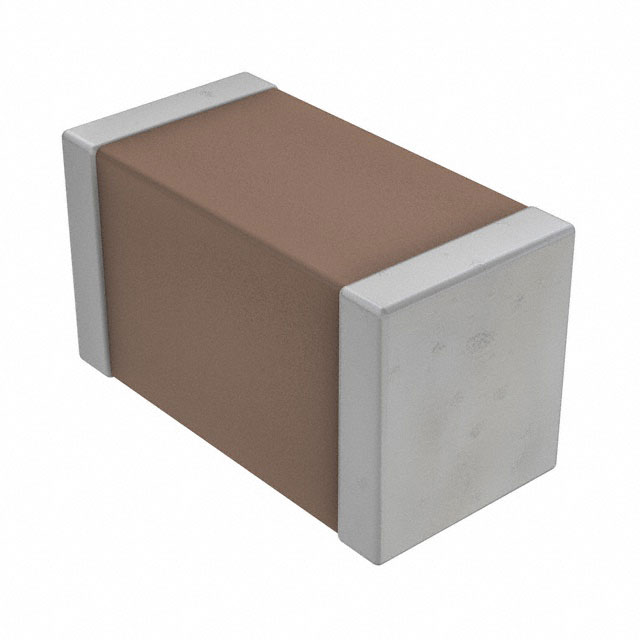

多层陶瓷电容器MLCC - SMD/SMT CGA 0603 50V 3300pF NP0 5% AEC-Q200
3300 pF ±5% 50V 陶瓷器 C0G,NP0 0603(1608 公制)
得捷:
CAP CER 3300PF 50V NP0 0603
立创商城:
3.3nF ±5% 50V
贸泽:
多层陶瓷电容器MLCC - SMD/SMT CGA 0603 50V 3300pF NP0 5% AEC-Q200
艾睿:
Since this CGA3E2NP01H332J080AA multilayer ceramic capacitor from TDK has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 5%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 0.0033uF.
Verical:
Cap Ceramic 0.0033uF 50V C0G 5% Pad SMD 0603 150C Automotive T/R
额定电压DC 50 V
电容 3300 PF
容差 ±5 %
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 NP0/-55℃~+125℃
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 汽车级, Automotive Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CGA3E2NP01H332J080AA TDK 东电化 | 当前型号 | 当前型号 |
CGA3E2C0G1H332J080AA 东电化 | 功能相似 | CGA3E2NP01H332J080AA和CGA3E2C0G1H332J080AA的区别 |
CGA3E2C0G2A332J080AA 东电化 | 功能相似 | CGA3E2NP01H332J080AA和CGA3E2C0G2A332J080AA的区别 |
CGA3E2NP02A332J080AA 东电化 | 功能相似 | CGA3E2NP01H332J080AA和CGA3E2NP02A332J080AA的区别 |
