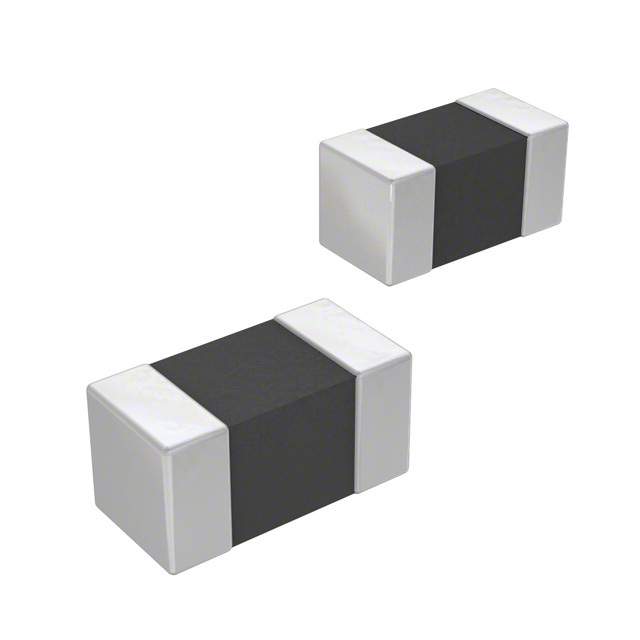

MLA系列压敏电阻ESD钳位保护器 MLA Series Varistor ESD Clamp Protectors
变阻器 电路 表面贴装,MLCV 0402(1005 公制)
得捷:
VARISTOR 8V 20A 0402
立创商城:
CG0402MLA 5.5MG
艾睿:
Have complete control of resistance in a voltage applied circuit by using this CG0402MLA-5.5MG MOV developed by Bourns. This device&s;s clamping current is 1 A and clamping voltage is 19 V. Its maximum surge current is 20 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. This varistor has a voltage of 9.6 V. Its tolerance voltage is 20%. Its capacitance value is 270pF. This device is made with metal oxide technology. The maximum AC voltage rating is 4 VAC and the maximum DC voltage rating is 5.5 VDC.
安富利:
Var MOV 4VAC/5.5VDC 20A 9.6V 0402 SMD Paper T/R
Chip1Stop:
Var MOV 4VAC/5.5VDC 20A 9.6V 0402 SMD Paper T/R
Verical:
Var MOV 4VAC/5.5VDC 20A 18V 0402 SMD T/R
Newark:
# BOURNS CG0402MLA-5.5MG TVS Varistor, MOV, 4 V, 5.5 V, MLA Series, 19 V, 0402 [1005 Metric], ESD Clamp Protector
Electro Sonic:
Var MOV 4VAC/5.5VDC 20A 18V 0402 SMD T/R
Win Source:
VARISTOR 8V 20A 0402
额定电压DC 5.5 V
额定电压AC 4 V
工作电压 4.00 V
额定电流 20.0 A
电容 270 pF
电路数 1
钳位电压 19 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 5.5 V
额定电压AC Max 4 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CG0402MLA-5.5MG Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
VRS0402SR55R101N 国巨 | 功能相似 | CG0402MLA-5.5MG和VRS0402SR55R101N的区别 |
MLV0402-080M-C211 泰科 | 功能相似 | CG0402MLA-5.5MG和MLV0402-080M-C211的区别 |
NV73A1ETTP8 KOA Speer | 功能相似 | CG0402MLA-5.5MG和NV73A1ETTP8的区别 |
