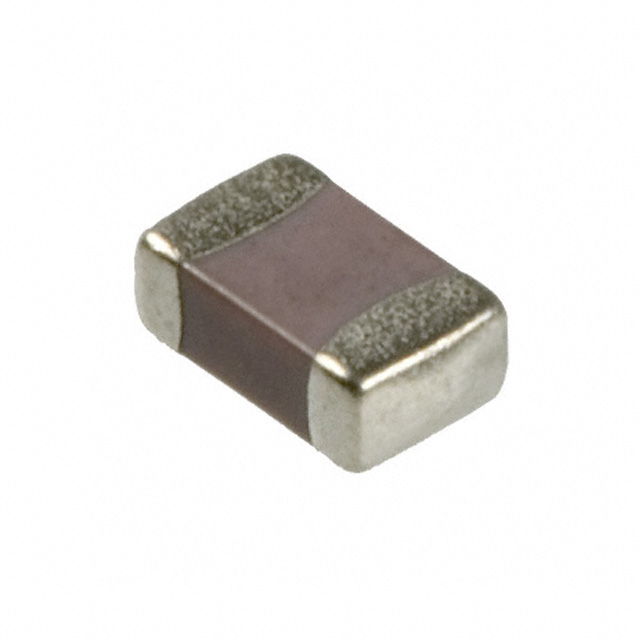

Cap Ceramic 100pF 50V C0G 10% SMD 0805 125
SMD Comm C0G SnPb, Ceramic, Commercial Grade, 100 pF, 10%, 50 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0805
立创商城:
100pF ±10% 50V
得捷:
CAP CER 100PF 50V NP0 0805
艾睿:
Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this C0805C101K5GALTU multilayer ceramic capacitor from Kemet! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 10%. Its capacitance value is 100pF. This product is 2 mm long, 0.78 mm tall and 1.25 mm deep.
Verical:
Cap Ceramic 100pF 50V C0G 10% Pad SMD 0805 125C Extreme Low ESR T/R
额定电压DC 50.0 V
绝缘电阻 100 GΩ
电容 100 pF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount

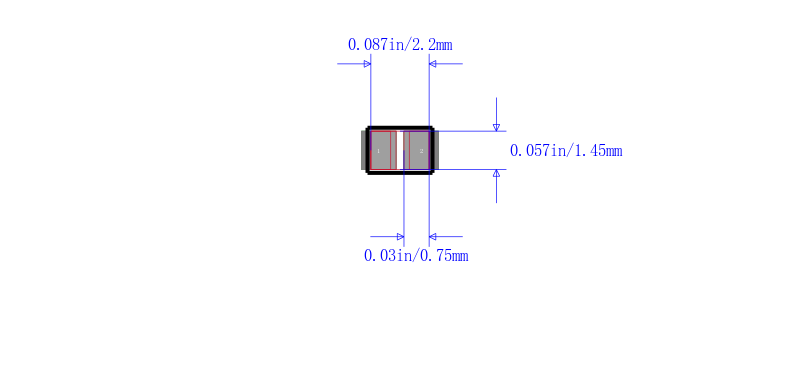

封装公制 2012
封装 0805
引脚间距 0.75 mm
长度 2 mm
宽度 2 mm
高度 0.78 mm
封装公制 2012
封装 0805
引脚间距 0.75 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0805C101K5GALTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
08055A101KAJ2A 艾维克斯 | 类似代替 | C0805C101K5GALTU和08055A101KAJ2A的区别 |
