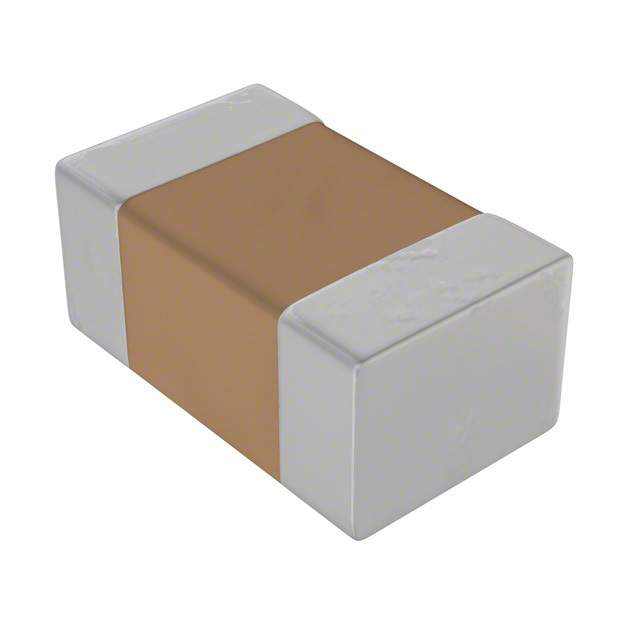

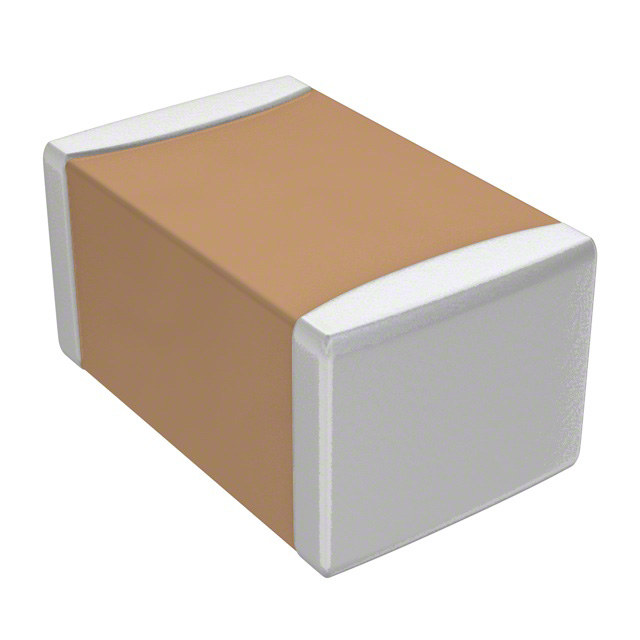

TDK C2012X6S1A106K085AC 多层陶瓷电容器, 表面贴装, C Series, 10 µF, ± 10%, X6S, 10 V, 0805 [2012 公制]
10µF ±10% 10V Ceramic Capacitor X6S 0805 2012 Metric
得捷:
CAP CER 10UF 10V X6S 0805
立创商城:
10uF ±10% 10V
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 10uF 10% 10Volts
e络盟:
TDK C2012X6S1A106K085AC 多层陶瓷电容器, 表面贴装, C Series, 10 µF, ± 10%, X6S, 10 V, 0805 [2012 公制]
艾睿:
Do you need a capacitor with high stability and low losses? Then this C2012X6S1A106K085AC multilayer ceramic capacitor from TDK is the solution you are looking for! It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 105 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 10%. This product is 2 mm long, 0.85 mm tall and 1.25 mm deep. Its capacitance value is 10uF.
安富利:
Cap Ceramic 10uF 10V X6S 10% SMD 0805 105°C T/R
Verical:
Cap Ceramic 10uF 10V X6S 10% Pad SMD 0805 105C Low ESR T/R
Newark:
# TDK C2012X6S1A106K085AC CAP, MLCC, X6S, 10UF, 10V, 0805
额定电压DC 10 V
绝缘电阻 10 GΩ
电容 10 µF
容差 ±10 %
电介质特性 X6S
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
厚度 0.85 mm
材质 X6S/-55℃~+105℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 4000
制造应用 Commercial Grade, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C2012X6S1A106K085AC TDK 东电化 | 当前型号 | 当前型号 |
C2012X6S1A106M085AC 东电化 | 功能相似 | C2012X6S1A106K085AC和C2012X6S1A106M085AC的区别 |
C2012X6S1C106K085AC 东电化 | 功能相似 | C2012X6S1A106K085AC和C2012X6S1C106K085AC的区别 |
C2012X6S1A106K125AB 东电化 | 功能相似 | C2012X6S1A106K085AC和C2012X6S1A106K125AB的区别 |
