CM1293A-02SR

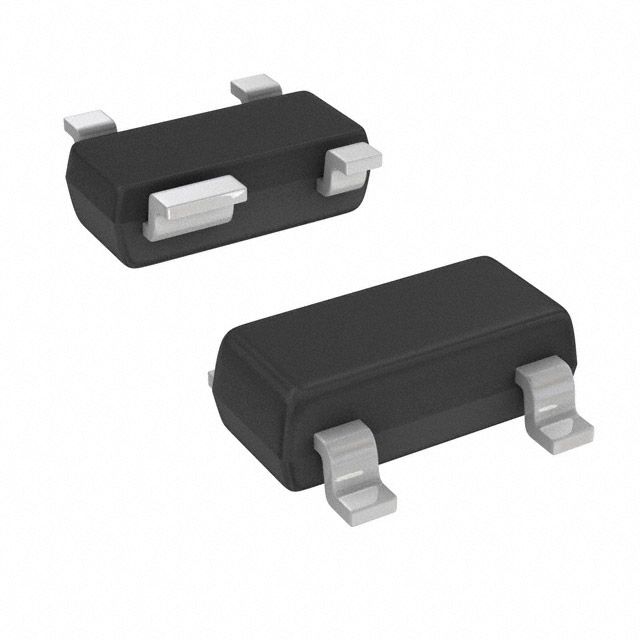

ON SEMICONDUCTOR  CM1293A-02SR  ESD Protection Device, 2-CH, 9.9 V, SOT-143, 4 Pins, 3.3 V 新

低电容 ESD 保护阵列

### 瞬态电压抑制器，On Semiconductor

得捷:
TVS DIODE 3.3VWM 9.9VC SOT143-4

立创商城:
CM1293A-02SR

欧时:
ESD 保护阵列 ON Semiconductor CM1293A-02SR 单向, 0.22W, 9.9V, 4针 SOT-143封装

贸泽:
ESD Suppressors / TVS Diodes 2-ch. 8KV/1pF Ultra

e络盟:
静电保护装置, 2通道, 9.9 V, SOT-143, 4 引脚, 3.3 V, CM1293A Series

艾睿:
Never worry about unexpected ESD again from implementing this diode array CM1293A-02SR ESD protection device manufactured from ON Semiconductor. This ESD diode has a maximum ESD protection device voltage of ±8Min@Contact Disc/±15Min@HBM kV. This device&s;s maximum clamping voltage is 9.9Typ V. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a dual configuration. Its capacitance value is 2 pF.

Allied Electronics:
CM1293A-02SR, Dual Uni-Directional ESD Protection Array, 225mW, 4-Pin SOT-143

安富利:
The CM1293A family of diode arrays has been designed to provide ESD protection for electronic components or subsystems requiring minimal capacitive loading. These devices are ideal for protecting systems with high data and clock rates or for circuits requiring low capacitive loading. Each ESD channel consists of a pair of diodes in series that steer the positive or negative ESD current pulse to either the positive VP or negative VN supply rail. A Zener diode is embedded between VP and VN which helps protect the VCC rail against ESD strikes. The CM1293A protects against ESD pulses up to ±8kV contact discharge per the IEC 61000-4-2 Level 4 standard. This device is particularly well-suited for protecting systems using high-speed ports such as USB2.0, IEEE1394 Firewire®, iLink™, Serial ATA, DVI, HDMI, and corresponding ports in removable storage, digital camcorders, DVD-RW drives and other applications where extremely low loading capacitance with ESD protection are required in a small package footprint. The CM1293A family of devices is available with RoHS-compliant, lead-free finishing.

Chip1Stop:
ESD Suppressor Diode Arrays ±8KV 4-Pin3+Tab SOT-143 T/R

Verical:
ESD Suppressor Diode Diode Array Uni-Dir 5.5V 4-Pin SOT-143 T/R

Newark:
# ON SEMICONDUCTOR  CM1293A-02SR  DIODE, ESD PROTECTION, 3.3V, 1.5PF

力源芯城:
2通道低电容ESD保护阵列

Win Source:
TVS DIODE 3.3VWM 9.9VC SOT1434
