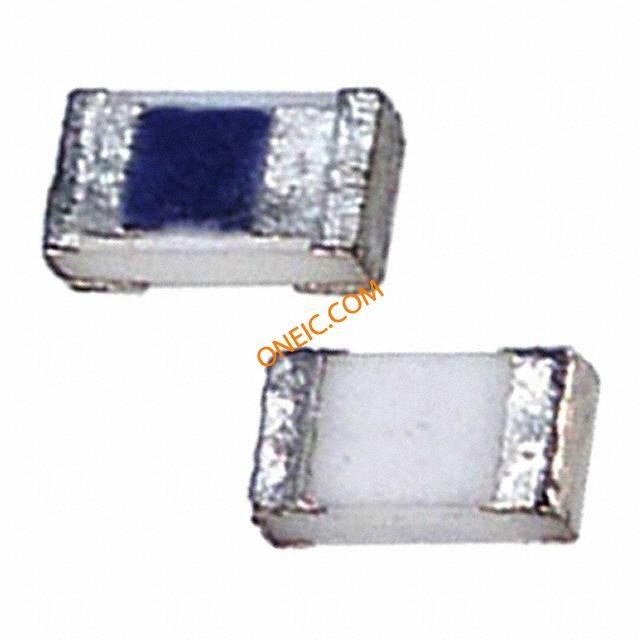

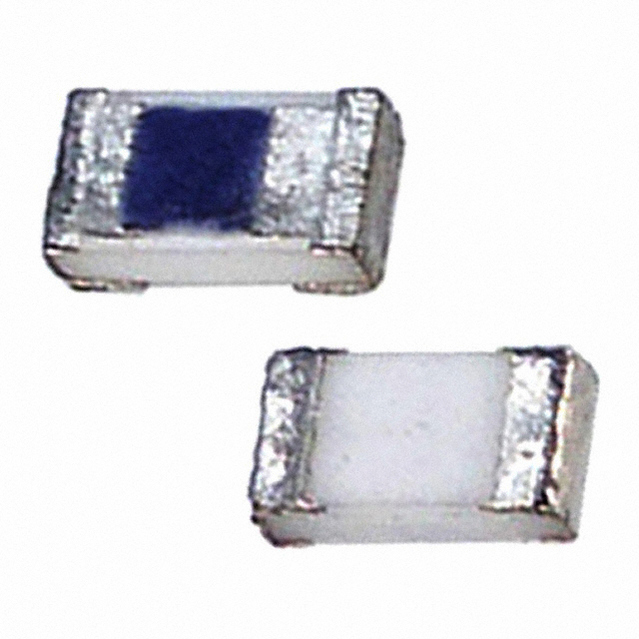

Fuse Chip Very Fast Acting 5A 32V SMD Solder Pad 0603 Ceramic
5A 32V AC 32V DC Fuse Board Mount Cartridge Style Excluded Surface Mount 0603 1608 Metric
得捷:
FUSE BOARD MNT 5A 32VAC/VDC 0603
贸泽:
Surface Mount Fuses Fuse
艾睿:
Fuse Chip Very Fast Acting 5A 32V SMD Solder Pad 0603 Ceramic CE/UL
安富利:
Fuse Chip 5A 32V Very Fast 2-Pin Solder Pad Surface Mount
Chip1Stop:
Fuse Chip Very Fast Acting 5A 32V SMD Solder Pad 0603 Ceramic
Verical:
Fuse Chip Very Fast Acting 5A 32V SMD Solder Pad 0603 Ceramic CE/UL
额定电压DC 32 V
额定电压AC 32 V
额定电流 5 A
耗散功率 0.98 W
电阻 0.019 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 0.98 W
额定电压 32 V
额定电压DC Max 63 V
额定电压AC Max 32 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.82 mm
高度 0.48 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
