C322C103K2R5TA

KEMET  C322C103K2R5TA  多层陶瓷电容, Gold Max, C322系列, 0.01 µF, ± 10%, X7R, 200 V, 径向引线

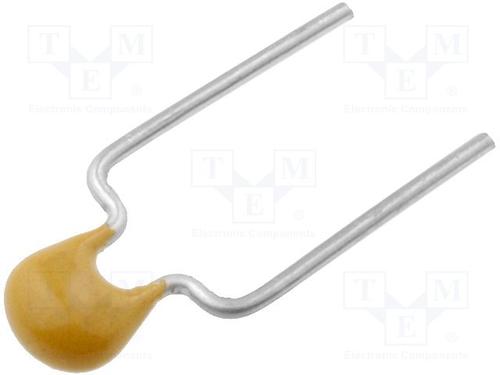

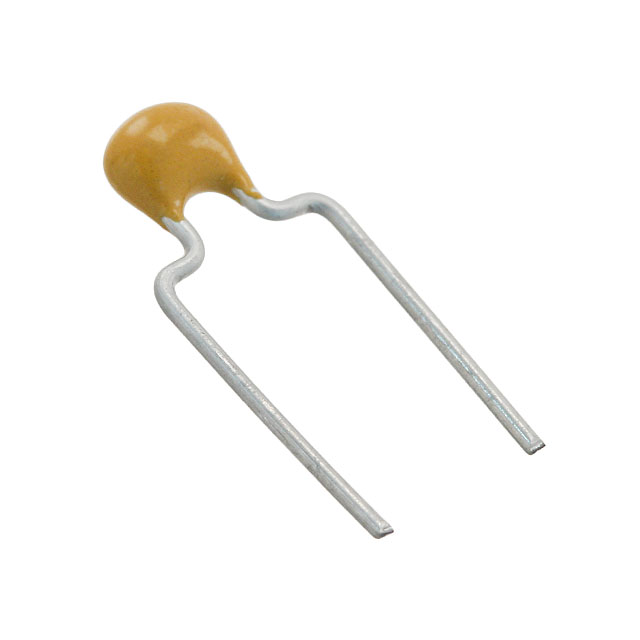

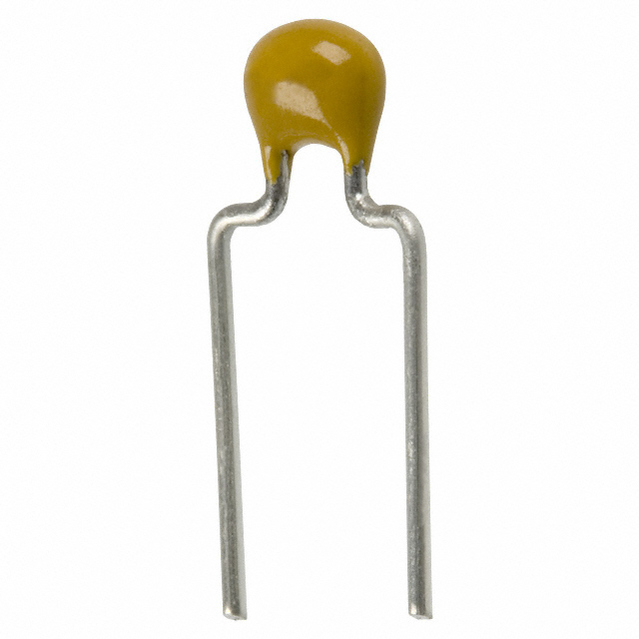

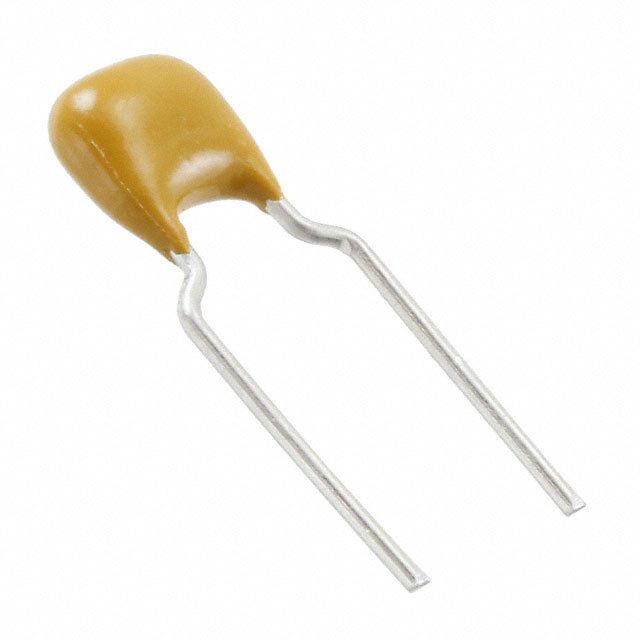

The Kemet C322 series are radial leaded, standard Goldmax multilayer ceramic capacitor with X7R dielectric material. MLCCs are monolithic devices that consist of laminated layers of specially formulated ceramic dielectric materials interspersed with metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.

.

Capacitance value ranges from 10pF to 10µF

.

Rated DC voltage of 25V, 50V, 100V, 200V, 250V, 500V, 1KV, 1.5KV and 2KV

.

K ±10%, M ±20%, P 0, -100%, Z -20, +80% tolerance

.

100% matte tin Sn with nickel Ni plating on steel core

.

Dimension is 5.08mm x 6.60mm L x H

.

5.08mm pitch spacing

.

Epoxy encapsulated
