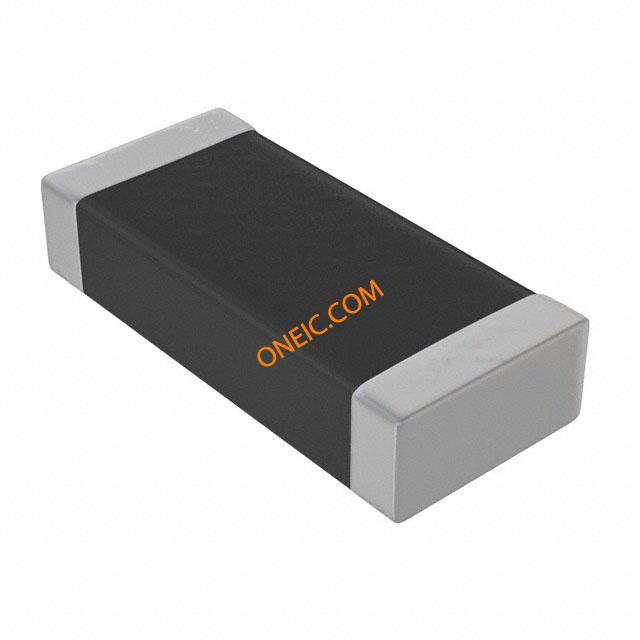

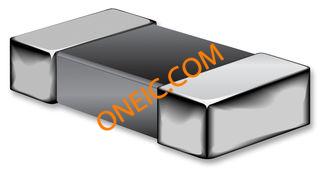

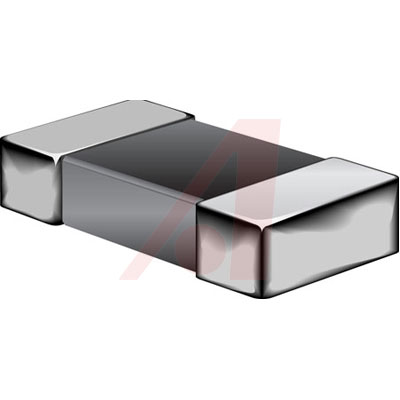

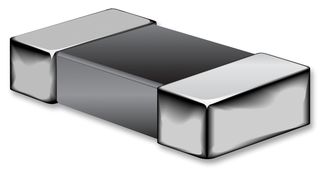

BOURNS CVH252009-1R0M 表面贴装高频电感器, CVH252009系列, 1 µH, ± 20%, 1008 [2520 公制], 60 MHz, 0.055 ohm
**Features:
**
* Monolithic Construction Offering High Reliability
* Magnetically Shielded Construction Providing Low Radiation
* Low DC Resistance
* Low Profile, 1008 Size 2.5 × 2 × 0.9 mm**
Applications:
**
* DC/DC Converters For: Smart Phones, DVCs/DSCs, Tablets, HDDs/SSDs and Mobile Electronic Devices
得捷:
FIXED IND 1UH 1.6A 55 MOHM SMD
立创商城:
1uH ±20% 1.6A 55mΩ
贸泽:
Fixed Inductors 1uH 1MHz 20%
e络盟:
高频电感器, 1 µH, CVH252009系列, 1.6 A, 1008 [2520 公制], 多层, 0.055 ohm
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power chip CVH252009-1R0M surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 1.6 A with a maximum resistance of 55m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 60MTyp Hz. This device utilizes multi-layer technology. It has an inductance of 1u H. This product is 2.7 mm long, 1 mm tall and 2.2 mm deep. It has a tolerance of 20%.
Allied Electronics:
Inductor; 1uH; 1.6A; 60MHz; 20%
安富利:
Ind Power Chip Shielded Multi-Layer 1uH 20% 1MHz Ferrite 1.6A 1008 T/R
Chip1Stop:
Ind Power Chip Shielded Multi-Layer 1uH 20% 1MHz Ferrite 1.6A 1008 T/R
Verical:
Inductor Power Chip Shielded Multi-Layer 1uH 20% 1MHz Ferrite 1.6A 0.055Ohm DCR 1008 T/R
Newark:
# BOURNS CVH252009-1R0M Surface Mount High Frequency Inductor, CVH252009 Series, 1 µH, 1.6 A, 1008 [2516 Metric]
MASTER:
Inductor Power Chip Shielded Multi-Layer 1uH 20% 1MHz Ferrite 1.6A 55mOhm DCR 1008 T/R
Electro Sonic:
Inductor Power Chip Shielded Multi-Layer 1uH 20% 1MHz Ferrite 1.6A 55mOhm DCR 1008 T/R
额定电流 1.6 A
容差 ±20 %
电感 1 µH
自谐频率 60 MHz
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤55 mΩ
额定电流DC 1.6 A
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.055 Ω
安装方式 Surface Mount
封装 1008

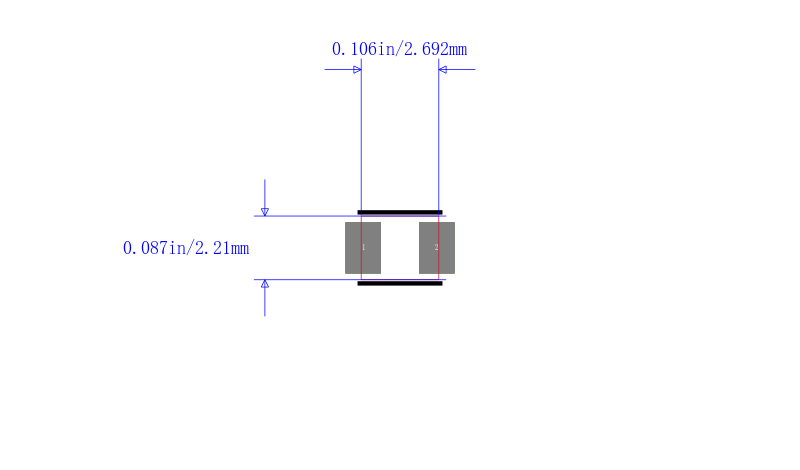

长度 2.7 mm
宽度 2.2 mm
高度 1 mm
封装 1008
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CVH252009-1R0M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
LQM2HPN1R0MG0L 村田 | 功能相似 | CVH252009-1R0M和LQM2HPN1R0MG0L的区别 |
