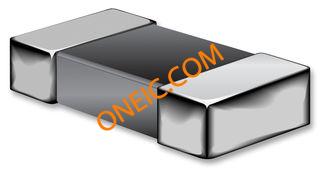

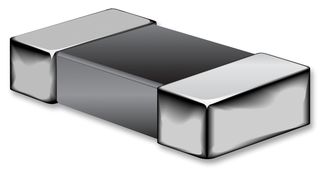

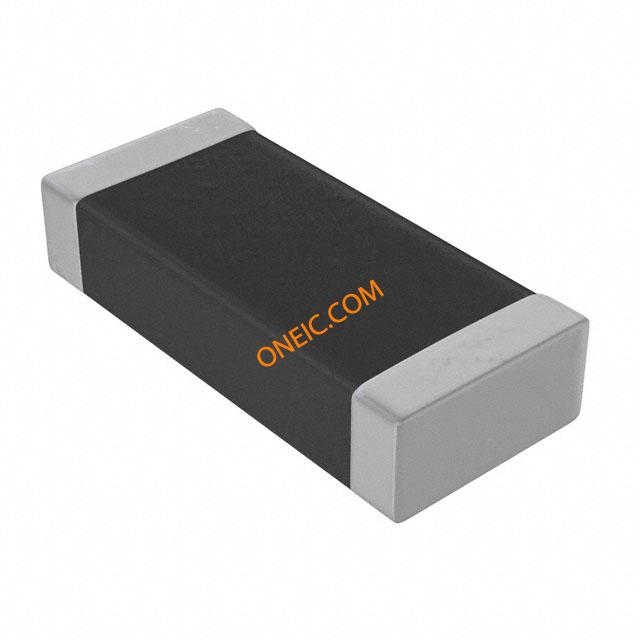

CVH252009-1R5M

BOURNS  CVH252009-1R5M  表面贴装高频电感器, CVH252009系列, 1.5 µH, ± 20%, 1008 [2520 公制], 50 MHz, 0.07 ohm

**Features:

**

* Monolithic Construction Offering High Reliability

* Magnetically Shielded Construction Providing Low Radiation

* Low DC Resistance

* Low Profile, 1008 Size 2.5 × 2 × 0.9 mm**

Applications:

**

* DC/DC Converters For: Smart Phones, DVCs/DSCs, Tablets, HDDs/SSDs and Mobile Electronic Devices

得捷:
FIXED IND 1.5UH 1.5A 70 MOHM SMD

立创商城:
1.5uH ±20% 1.5A 70mΩ

e络盟:
高频电感器, 1.5 µH, CVH252009系列, 1.5 A, 1008 [2520 公制], 多层, 0.07 ohm

艾睿:
This power chip CVH252009-1R5M surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 1.5u H. This SMD inductor has a maximum DC current of 1.5 A with a maximum resistance of 70m Ohm. This device utilizes multi-layer technology. This product is 2.7 mm long, 1 mm tall and 2.2 mm deep. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 50MTyp Hz. It has a tolerance of 20%.

Allied Electronics:
Inductor; 1.5uH; 1.5A; 1MHz; 20%

安富利:
Ind Power Chip Shielded Multi-Layer 1.5uH 20% 1MHz Ferrite 1.5A 1008 T/R

Chip1Stop:
Ind Power Chip Shielded Multi-Layer 1.5uH 20% 1MHz Ferrite 1.5A 1008 T/R

Verical:
Inductor Power Chip Shielded Multi-Layer 1.5uH 20% 1MHz Ferrite 1.5A 0.07Ohm DCR 1008 T/R

Newark:
# BOURNS  CVH252009-1R5M  Surface Mount High Frequency Inductor, CVH252009 Series, 1.5 µH, 1.5 A, 1008 [2516 Metric]

MASTER:
Inductor Power Chip Shielded Multi-Layer 1.5uH 20% 1MHz Ferrite 1.5A 70mOhm DCR 1008 T/R

Electro Sonic:
Inductor Power Chip Shielded Multi-Layer 1.5uH 20% 1MHz Ferrite 1.5A 70mOhm DCR 1008 T/R
