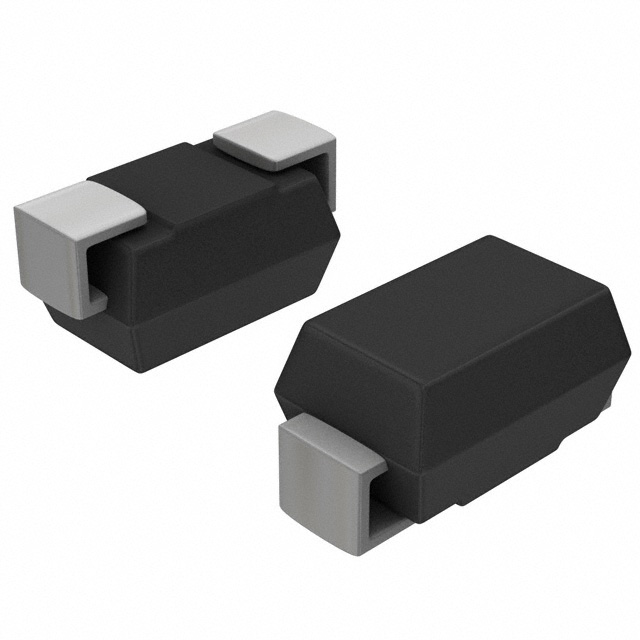

CD214A-T16CALF

Trans Voltage Suppressor Diode, 400W, 16V VRWM, Bidirectional, 1Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2Pin

General Information

The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.

Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AC SMA size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 200 V. Typical fast response times are less than 1.0 ns for unidirectional devices and less than 5.0 ns for bidirectional devices from 0 V to Minimum Breakdown Voltage.

Features

■Lead free versions available

■RoHS compliant lead free version

■Surface Mount SMA package

■Standoff Voltage: 5.0 to 170 volts

■Power Dissipation: 400 watts
