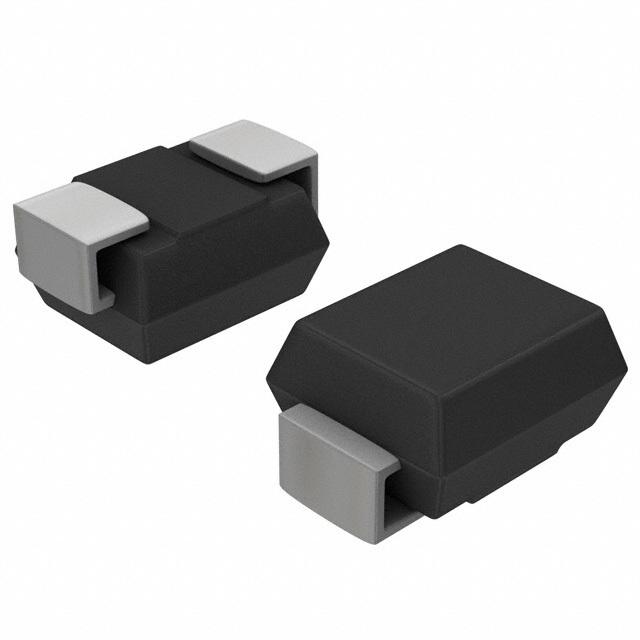

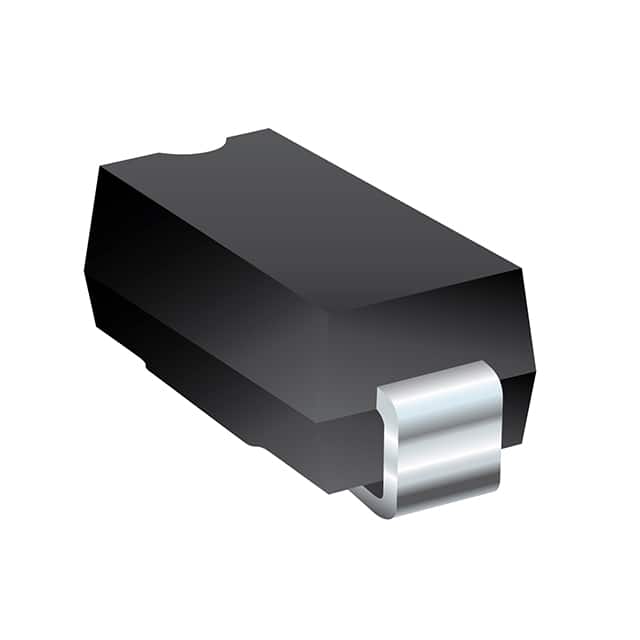

Diode TVS Single Bi-Dir 15V 600W 2Pin SMB
General Information
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AA SMB size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 200 V. Typical fast response times are less than 1.0 ns for unidirectional devices and less than 5.0 ns for bidirectional devices from 0 V to Minimum Breakdown Voltage.
Features
■ Lead free
■ RoHS compliant- .
■ Surface Mount SMB package
■ Standoff Voltage: 5.0 to 170 volts
■ Power Dissipation: 600 watts
击穿电压 19.2 V
电路数 1
钳位电压 24.4 V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 16.7 V
击穿电压 16.7 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMB
长度 4.57 mm
宽度 3.94 mm
高度 2.2 mm
封装 SMB
工作温度 -55℃ ~ 150℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD214B-T15CALF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CD214B-T15A 伯恩斯 | 完全替代 | CD214B-T15CALF和CD214B-T15A的区别 |
CD214B-T15CA 伯恩斯 | 完全替代 | CD214B-T15CALF和CD214B-T15CA的区别 |
CD214B-T150A 伯恩斯 | 类似代替 | CD214B-T15CALF和CD214B-T150A的区别 |
