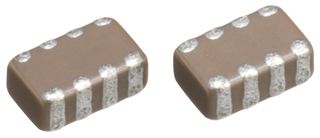

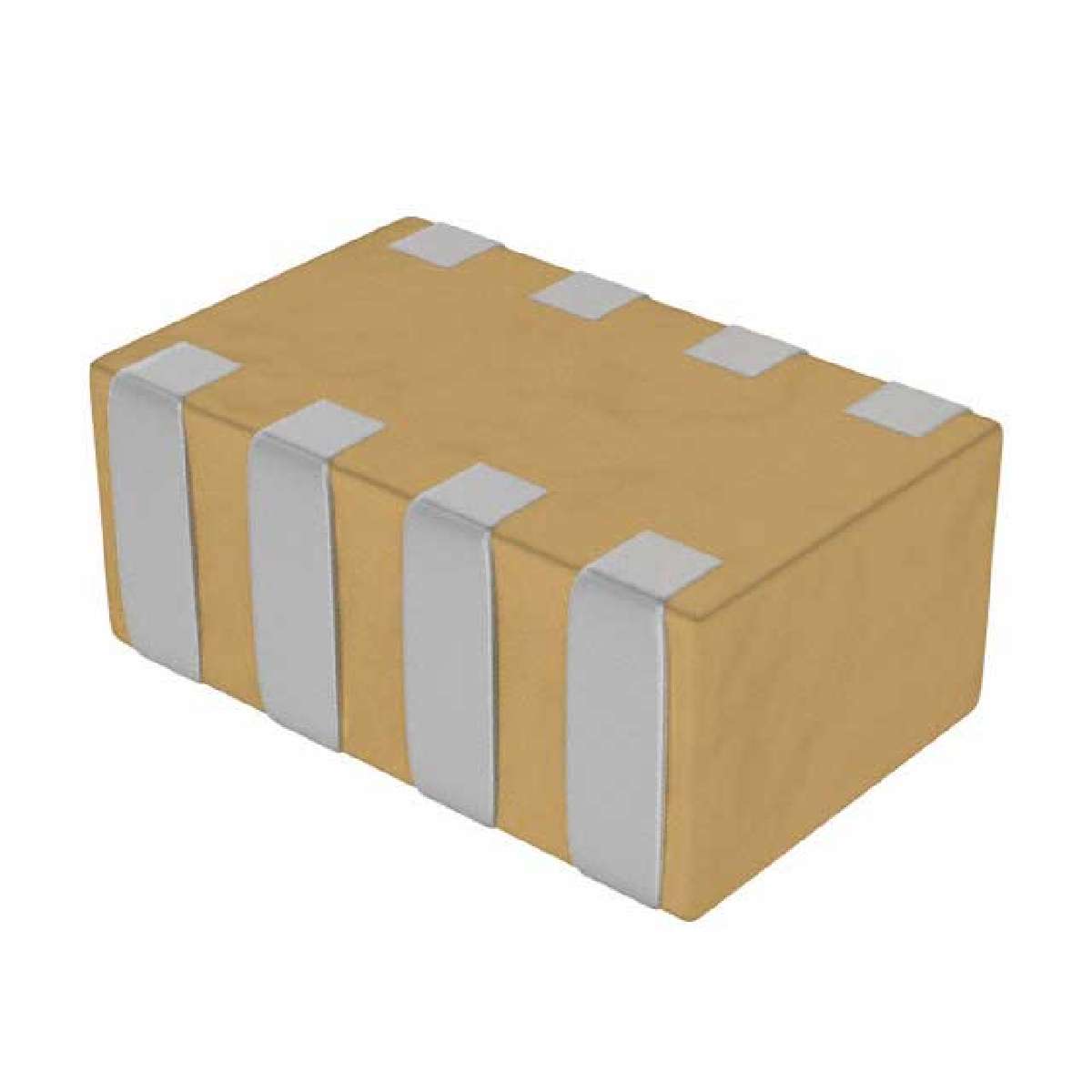

1206 22nF ±20% 50V X7R

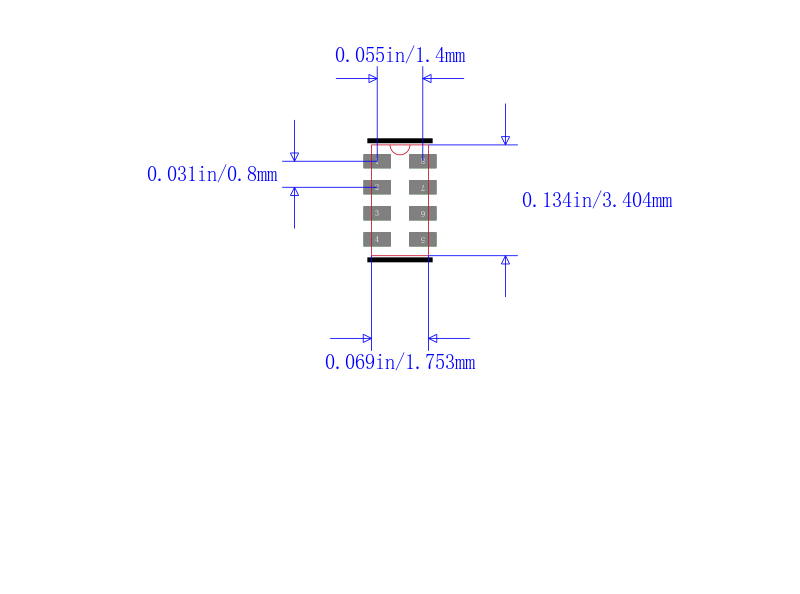

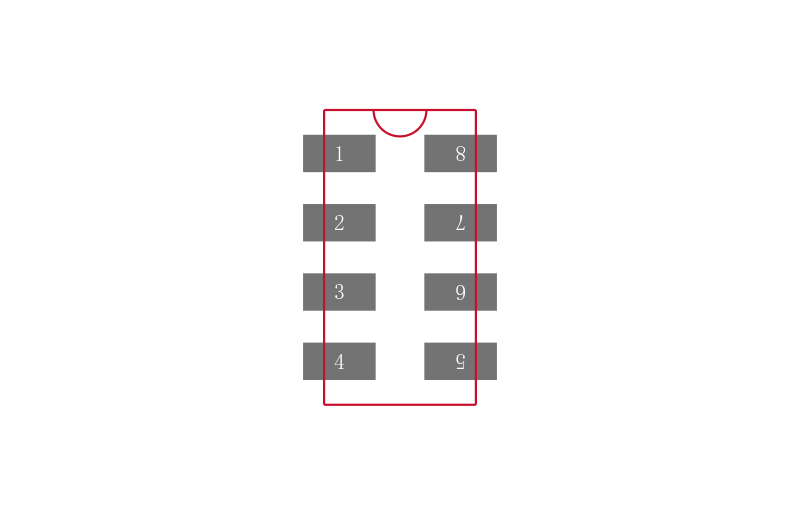

Using one of "s capacitor banks, you can be sure that your capacitor-based circuit is optimized for space. It can withstand a voltage of 50 VDC. It has 8 terminals. This high voltage capacitor bank has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product"s terminal pitch is 0.8 mm. Its capacitance value is 0.022uF. It has a tolerance of 20%. This product is 3.2 mm long, 1 mm tall and 1.6 mm deep.
额定电压DC 50.0 V
电容 0.022 µF
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 3216
封装 1206

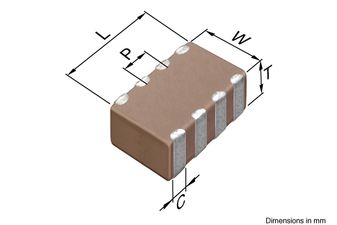

长度 3.2 mm
宽度 1.6 mm
高度 1 mm
封装公制 3216
封装 1206
材质 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CKCA43X7R1H223M100AA TDK 东电化 | 当前型号 | 当前型号 |
CKCA43X5R1H223M100AA 东电化 | 功能相似 | CKCA43X7R1H223M100AA和CKCA43X5R1H223M100AA的区别 |
