0805 3.3nF ±5% 50V C0G
3300pF ±5% 50V Ceramic Capacitor C0G, NP0 0805 2012 Metric
得捷:
CAP CER 3300PF 50V C0G 0805
立创商城:
3.3nF ±5% 50V
艾睿:

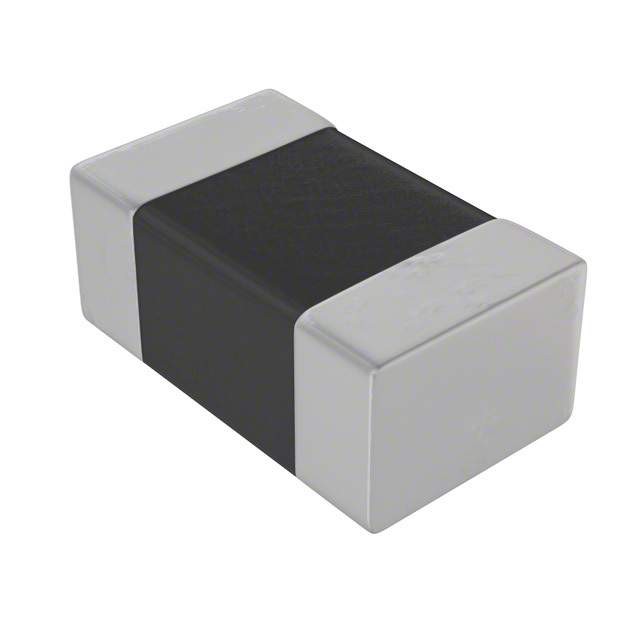

This CGJ4C2C0G1H332J060AA multilayer ceramic capacitor from TDK offers high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep. Its capacitance value is 0.0033uF. It has a tolerance of 5%.
Chip1Stop:
Cap Ceramic 0.0033uF 50V C0G 5% SMD 0805 125℃ Automotive T/R
Verical:
Cap Ceramic 0.0033uF 50V C0G 5% Pad SMD 0805 125C Automotive T/R
额定电压DC 50 V
电容 3300 PF
容差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 高可靠性, High Reliability Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CGJ4C2C0G1H332J060AA TDK 东电化 | 当前型号 | 当前型号 |
C2012C0G1H332J060AA 东电化 | 功能相似 | CGJ4C2C0G1H332J060AA和C2012C0G1H332J060AA的区别 |
C2012C0G1H332J125AA 东电化 | 功能相似 | CGJ4C2C0G1H332J060AA和C2012C0G1H332J125AA的区别 |
