0603 150nF ±20% 25V X8R
0.15µF ±20% 25V Ceramic Capacitor X8R 0603 1608 Metric
得捷:
CAP CER 0.15UF 25V X8R 0603
艾睿:

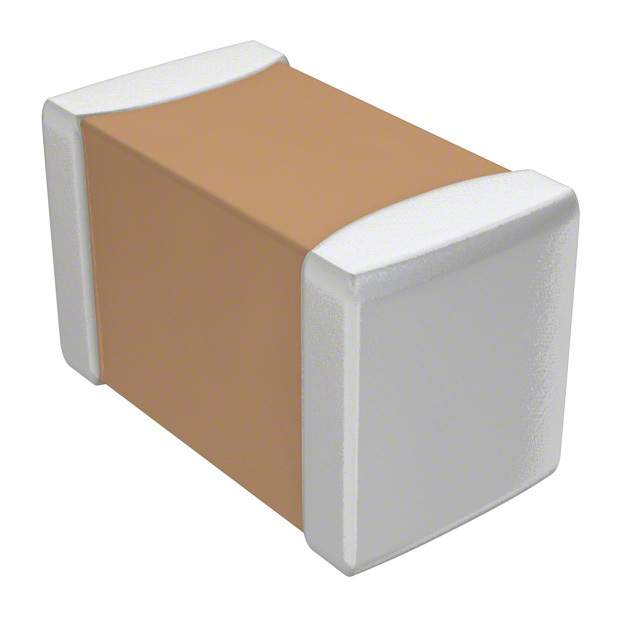

This C1608X8R1E154M080AB multilayer ceramic capacitor from TDK can be used in multiple applications and for various purposes. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. It has a tolerance of 20%. Its capacitance value is 0.15uF.
Verical:
Cap Ceramic 0.15uF 25V X8R 20% Pad SMD 0603 150C T/R
额定电压DC 25 V
电容 150000 PF
容差 ±20 %
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 1608
封装 0603

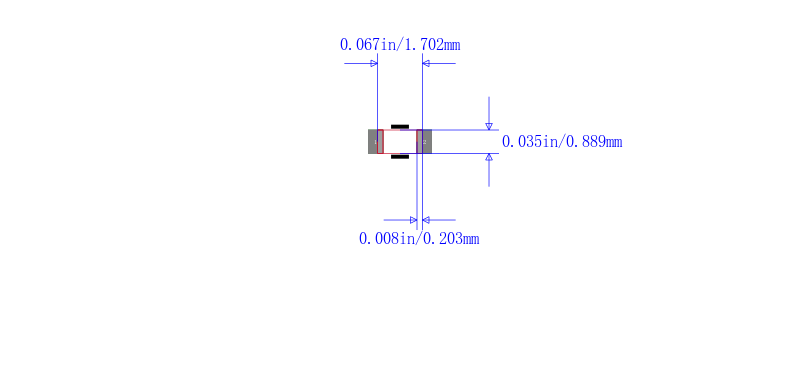

长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 X8R/-55℃~+150℃
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用, for Automotive use., Please refer to Part No., Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C1608X8R1E154M080AB TDK 东电化 | 当前型号 | 当前型号 |
CGA3E3X8R1E154M080AB 东电化 | 类似代替 | C1608X8R1E154M080AB和CGA3E3X8R1E154M080AB的区别 |
C1608X8R1E154K080AB 东电化 | 类似代替 | C1608X8R1E154M080AB和C1608X8R1E154K080AB的区别 |
