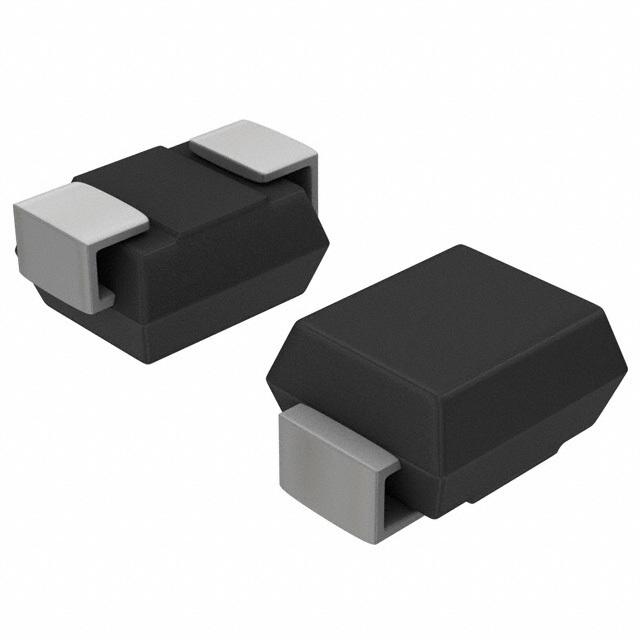

CD214B-T16CALF

ESD 抑制器/TVS 二极管 TVS Bidirect Diode 16VOLT

General Information

The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.

Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AA SMB size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 200 V. Typical fast response times are less than 1.0 ns for unidirectional devices and less than 5.0 ns for bidirectional devices from 0 V to Minimum Breakdown Voltage.

Features

■ Lead free

.

■ Surface Mount SMB package

■ Standoff Voltage: 5.0 to 170 volts

■ Power Dissipation: 600 watts
