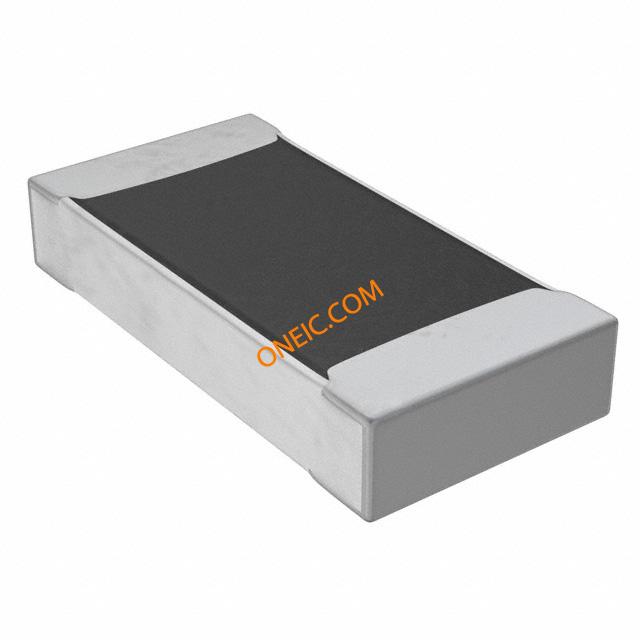

Fuse Chip Slow Blow Acting 2.5A 63V SMD Solder Pad 1206 Ceramic
* Slow Blow * Small size, 1206 SMD * Current rating from 750mA to 5A * Wide operating temperature range from -55°C to 125°C * Tape & Reel for automatic SMD placement * Compatible with reflow and wave soldering * RoHS 6 compliant MSL =1 * Halogen Fee * Leadfree
艾睿:

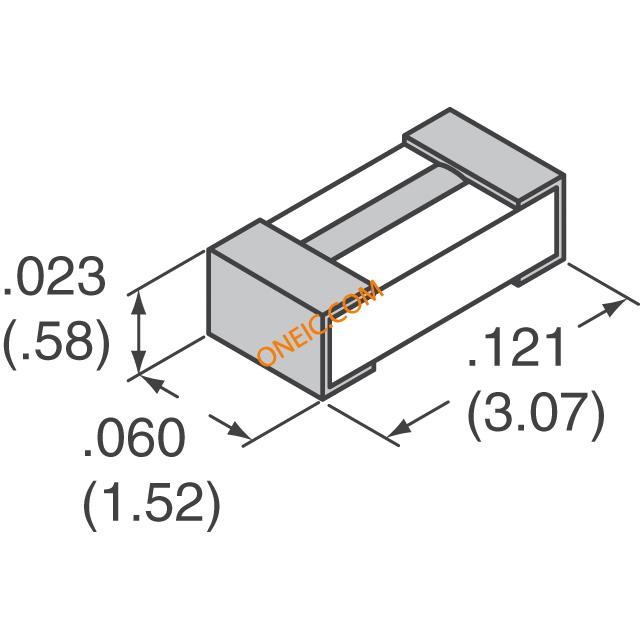

A great alternative to a circuit breaker, this a chip C1S 2.5 fuse from Bel Fuse will protect your electronics. Its maximum power dissipation is 0.43Nom W. This device has a maximum power dissipation of 0.43Nom W. This device has a current rating of 2.5. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The C1S 2.5 fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Its fuse is made from ceramic. The maximum AC voltage rating is 63 VAC and the maximum DC voltage rating is 63 VDC. This product is 3.2 mm long, 0.58 mm tall and 1.52 mm deep.
安富利:
Fuse Chip 2.5A 63V Slow Blow 2-Pin Solder Pad Surface Mount
Chip1Stop:
Fuse Chip Slow Blow Acting 2.5A 63V SMD Solder Pad 1206 Ceramic
Verical:
Fuse Chip Slow Blow Acting 2.5A 63V SMD Solder Pad 1206 Ceramic CE/cULus
