2 , 4 , 8通道低电容ESD保护阵列 2, 4, and 8-Channel Low-Capacitance ESD Protection Array

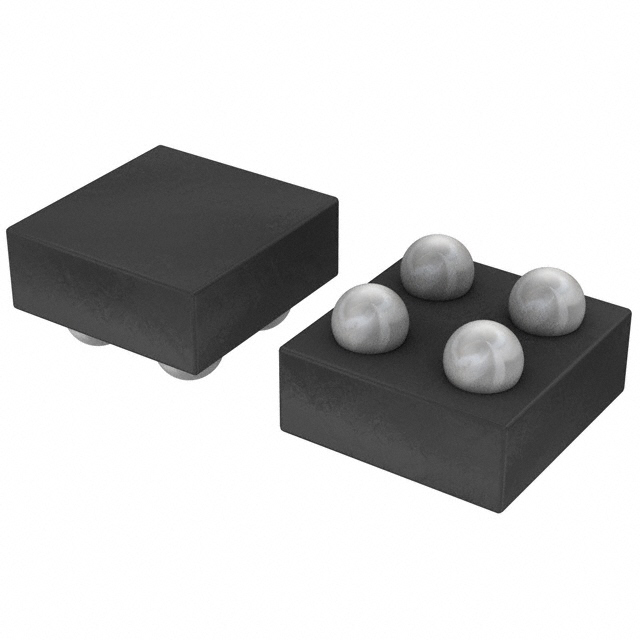

9.8V(标准) 夹子 1A(8/20µs) Ipp TVS - 表面贴装型 4-WLCSP(0.96x0.96)
得捷:
TVS DIODE 3.3VWM 9.8VC 4WLCSP
立创商城:
CM1230-J2CP
艾睿:
Install this diode array CM1230-J2CP ESD protection device from ON Semiconductor to prevent future damage to your electronic equipment from electrostatic discharge. This device&s;s maximum clamping voltage is 9.8Typ V. This ESD diode has a maximum ESD protection device voltage of ±8Min@Contact Disc/±15Min@HBM kV. This ESD diode has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its capacitance value is 1.2 pF. It is made in a dual configuration.
Chip1Stop:
ESD Suppressor Diode Arrays ±8KV 4-Pin WLCSP T/R
Verical:
ESD Suppressor Diode Diode Array Uni-Dir 5.5V 4-Pin WLCSP T/R
电容 1.2 pF
无卤素状态 Halogen Free
击穿电压 5.5 V
通道数 2
钳位电压 9.8 V
最小反向击穿电压 6 V
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 WLCSP-4
高度 0.42 mm
封装 WLCSP-4
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用, I/O port protection including USB, 1394 and serial ATA
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CM1230-J2CP ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CM1230-02CP 安森美 | 类似代替 | CM1230-J2CP和CM1230-02CP的区别 |
