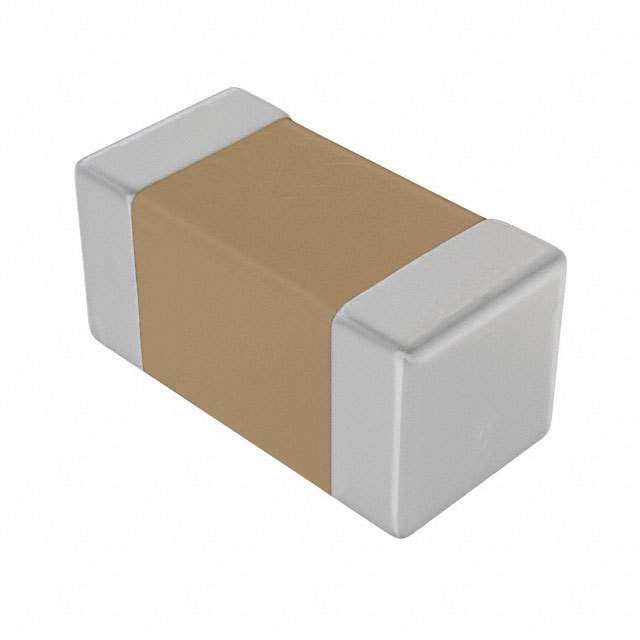

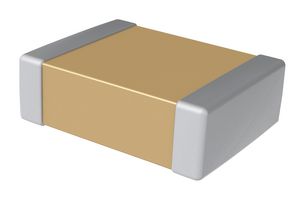

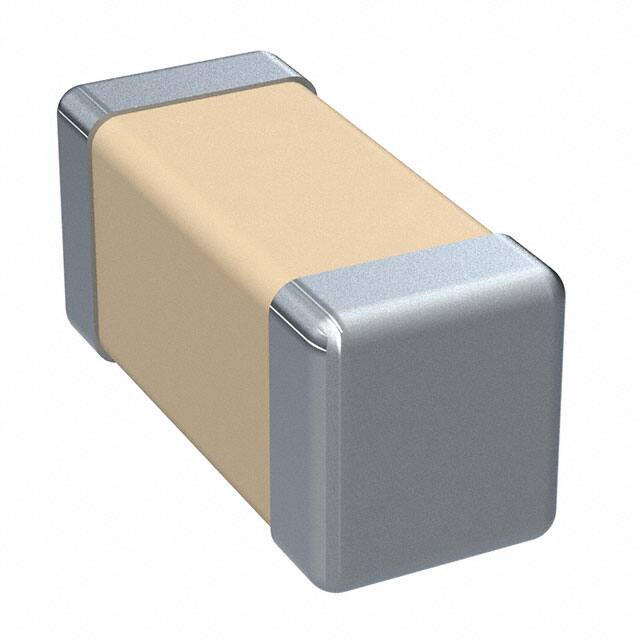

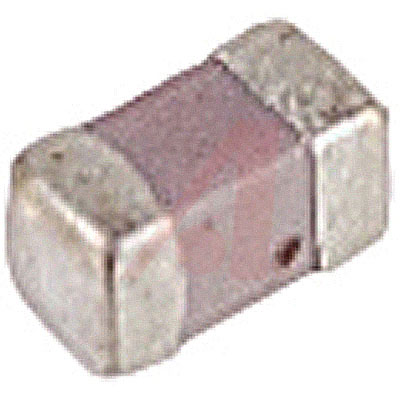

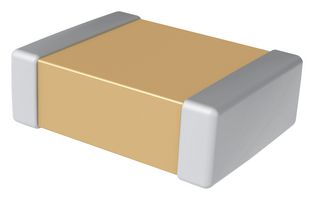

KEMET C0402C223K8RACTU CAP, MLCC, X7R, 0.022UF, 10V, 0402 新
Ceramic chips consist of formulated ceramic dielectric materials which have been fabricated into thin layers, interspersed with metal electrodes alternately exposed on opposite edges of the laminated structure. The entire structure is then fired at high temperature to produce a monolithic block which provides high capacitance values in a small physical volume. After firing, conductive terminations are applied to opposite ends of the chip to make contact with the exposed electrodes. Kemet ceramic chip capacitors are offered in the five most popular temperature characteristics: C0G NP0 ,X7R, X5R,Z5U & Y5V.
额定电压DC 10.0 V
绝缘电阻 10 GΩ
电容 0.022 μF
容差 ±10 %
电介质特性 X7R
击穿电压集电极-发射极 20 V
增益 15dB ~ 23dB
最小电流放大倍数hFE 60 @5mA, 10V
额定功率Max 150 mW
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 1005
封装 0402
引脚间距 0.3 mm
长度 1.00 mm
宽度 1 mm
高度 0.5 mm
封装公制 1005
封装 0402
引脚间距 0.3 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C0402C223K8RACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C0402C223K5RACTU 基美 | 功能相似 | C0402C223K8RACTU和C0402C223K5RACTU的区别 |
LMK105B7223KV-F 太诱 | 功能相似 | C0402C223K8RACTU和LMK105B7223KV-F的区别 |
C0402C223K4RACTU 基美 | 功能相似 | C0402C223K8RACTU和C0402C223K4RACTU的区别 |
