1.5nF ±20% 100V Z5U
1500 pF ±20% 100V 陶瓷器 Z5U 径向
得捷:
CAP CER 1500PF 100V Z5U RADIAL
立创商城:
1.5nF ±20% 100V
艾睿:
With alternating layers of ceramic acting as the dielectric and electrodes, this C315C152M1U5TA multilayer ceramic capacitor from Kemet achieves a large capacitance in a small package. It can withstand a voltage of 100 VDC. Users like its straight wire form. This MLCC capacitor has a maximum operating temperature of 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This product is 3.81Max mm long, 5.33Max mm tall and 2.54Max mm deep. It has a tolerance of 20%. Its capacitance value is 0.0015uF. The C315C152M1U5TA MLCC capacitor has a radial termination style.
安富利:
Cap Ceramic 0.0015uF 100V Z5U 20% Radial 2.54mm 85°C Bulk
Newark:

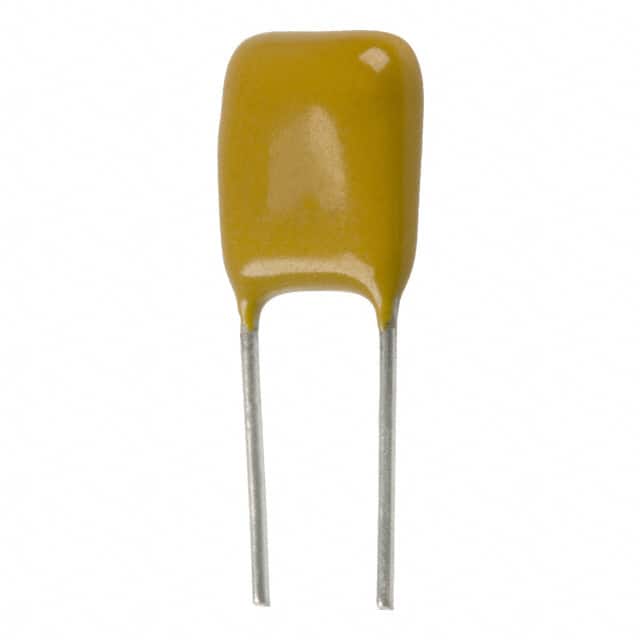

# KEMET C315C152M1U5TA Multilayer Ceramic Capacitor, 1500 pF, 100 V, Goldmax, 300 Series, ± 20%, Radial Leaded, Z5U
额定电压DC 100 V
电容 0.0015 µF
容差 ±20 %
电介质特性 Z5U
工作温度Max 85 ℃
工作温度Min 10 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 2

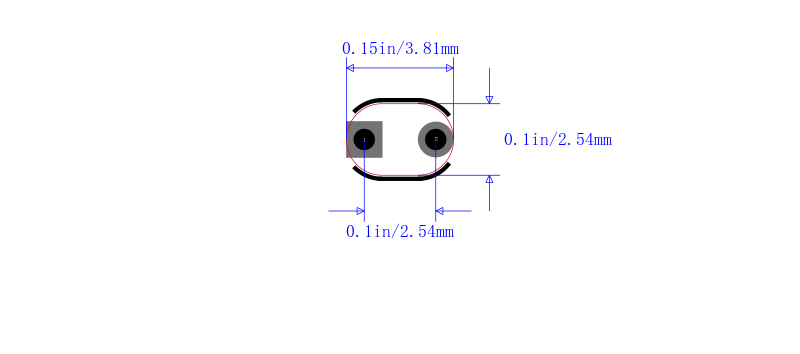

封装 Radial
引脚间距 2.54 mm
长度 3.81 mm
宽度 3.81 mm
高度 3.14 mm
脚长度 7.00 mm
封装 Radial
引脚间距 2.54 mm
材质 Z5U/-55℃~+125℃
工作温度 10℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C315C152M1U5TA KEMET Corporation 基美 | 当前型号 | 当前型号 |
C315C152M1U5CA 基美 | 类似代替 | C315C152M1U5TA和C315C152M1U5CA的区别 |
