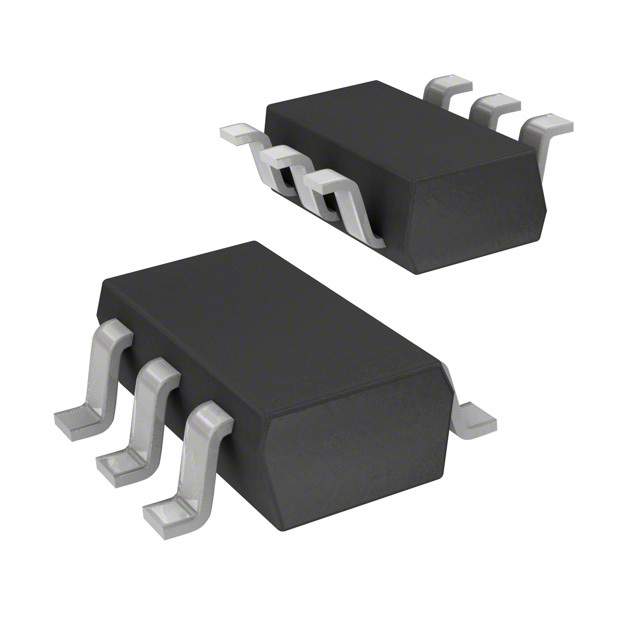

BOURNS CDSOT236-T15C TVS二极管, AEC-Q510, CDSOT236系列, 双向, 24 V, SOT-23, 6 引脚
34.6V 夹子 10A(8/20µs) Ipp TVS - 表面贴装型 SOT-23-6
得捷:
TVS DIODE 15VWM 34.6VC SOT23-6
立创商城:
Vrwm:15V 350W
e络盟:
TVS二极管, AEC-Q510, CDSOT236系列, 双向, 24 V, SOT-23, 6 引脚
艾睿:
This tvs CDSOT236-T15C ESD protection device from Bourns protects against electrostatic discharge. This device&s;s maximum clamping voltage is 34.6 V. This ESD diode has an operating temperature range of -55 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a quad configuration. Its capacitance value is 50 pF.
安富利:
ESD Suppressor TVS 6-Pin SOT-23 T/R
Newark:
# BOURNS CDSOT236-T15C Transient Voltage Suppressor, TVS, CDSOT236 Series, Bidirectional, SOT-23, 6, 16.7 V
Win Source:
TVS DIODE 15VWM 34.6VC SMD
工作电压 15 V
电容 50 pF
击穿电压 16.7 V
针脚数 6
钳位电压 24 V
脉冲峰值功率 350 W
最小反向击穿电压 16.7 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
高度 1.3 mm
封装 SOT-23-6
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 计算机和计算机周边, 通用, 通信与网络, 消费电子产品, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
